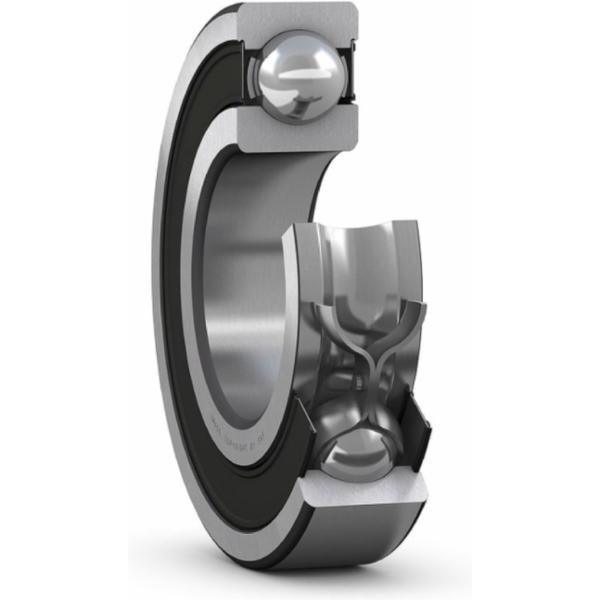

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert

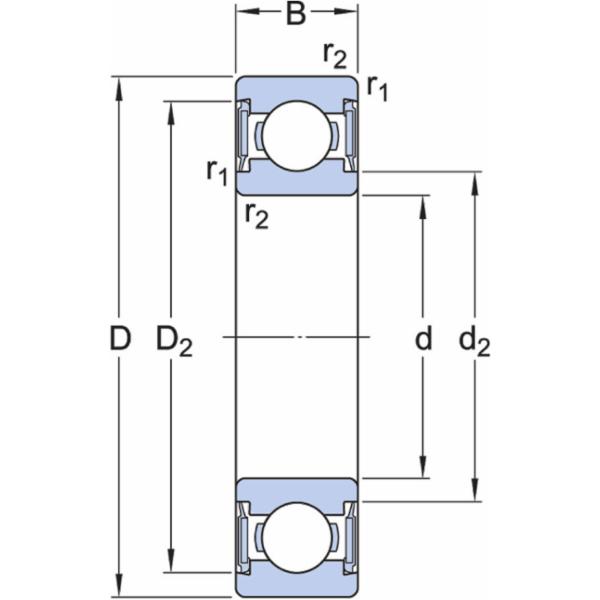

Inner diameter: 28,575 mm
Width: 15,875 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 63,5 mm
Specifications / All features
Brand:
SKF
01012020
EAN:
7316577017710
Supplier number:
SKF RLS 9-2RS1
Inner diameter
28,575 mm
Width
15,875 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
63,5 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
11.2 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Seal on both sides
Limiting speed
7,500 r/min
Bore diameter
28.575 mm
Basic dynamic load rating
20.3 kN
Outside diameter
63.5 mm
