SKF 6203-2Z/C3 single-row groove ball bearing cylindrical 17x40x12 mm

Supplier number: SKF 6203-2Z/C3 | EAN 7316570634440

12.86 tax incl.

€10.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable rotation with Skf precision

Practical benefits

Effective dual shield protection: With metal shields on both sides, you keep lubricant inside and dust outside for prolonged service life.
Ideal for high speeds: The C3 internal clearance accommodates thermal expansion effortlessly, ensuring you get smooth operation under demanding operating temperatures.
Versatile bidirectional load support: This single row design handles both radial and axial loads in either direction with minimal friction and vibration.

In a nutshell

The right choise for

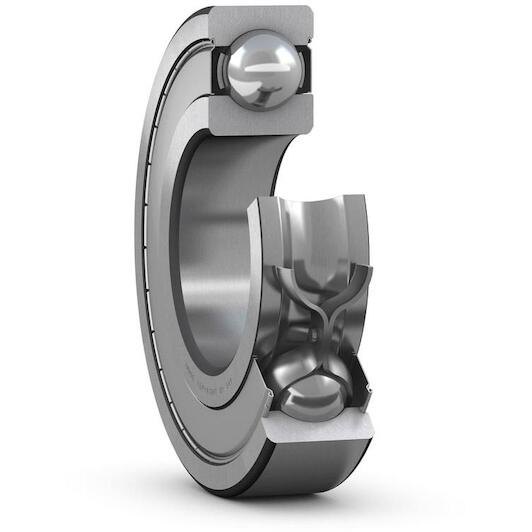

With the Skf 6203-2Z/C3 single row deep groove ball bearing, you ensure smooth and reliable rotation in electric motors, pumps, and machinery. Thanks to its 17X40X12 mm dimensions and durable steel build, it keeps rotating shafts running with minimal friction and vibration. The dual metal shields keep the pre-applied lubricant sealed inside while effectively blocking dust and debris, extending the service life of your equipment. With C3 radial internal clearance, this bearing easily accommodates thermal expansion during demanding high-speed operations. Ready to install straight out of the box, it handles both radial and axial loads in either direction with complete confidence.

Product information FAQ

€12.86

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 40 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 40 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 4.75
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 38000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 9.95
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 19000
Bore diameter: 17
Coating: Without
Outside diameter: 40

Brand SKF
01010849
EAN 7316570634440
Supplier number SKF 6203-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bore diameter is 17 mm, the outer diameter is 40 mm, and the width is 12 mm.
What does the C3 designation mean for this bearing?: C3 indicates greater radial internal clearance than normal, ideal for thermal expansion or higher speeds.
What kind of protection does the 2Z variant provide?: The 2Z code means the bearing has metal shields on both sides to keep dirt and dust out.
Which loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
Does this bearing require lubrication before installation?: No, it comes pre-greased from the factory and is ready to install right away.
