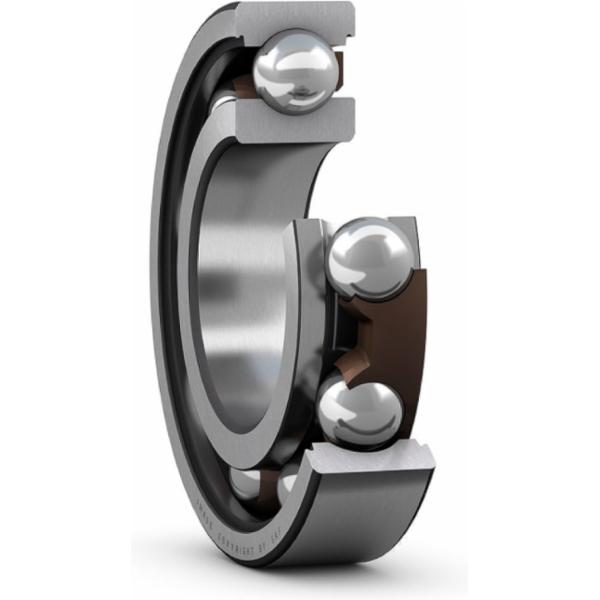

SKF 6305 ETN9 single-row groove ball bearing cylindrical 25x62x17 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 17 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570361629
  • Supplier number: SKF 6305 ETN9
Inner diameter
25 mm
Width
17 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Plastic
Bore type
Cylindrical
High temperature
No
Outer diameter
62 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
13.4 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
24,000 r/min
Lubricant
None
Cage
Non-metallic
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
16,000 r/min
Bore diameter
25 mm
Basic dynamic load rating
26 kN
Outside diameter
62 mm
