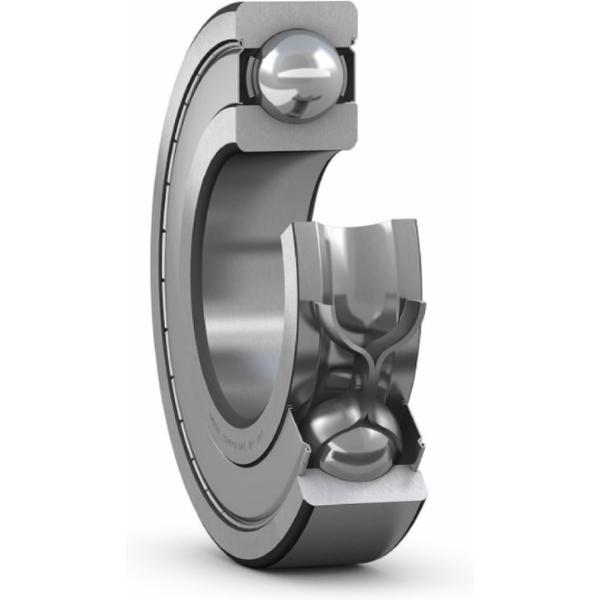

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 25 mm
Width: 17 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 62 mm

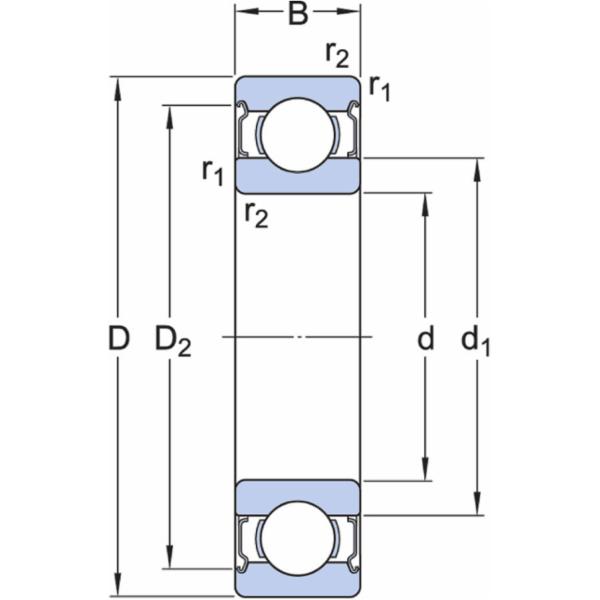

Specifications / All features
Brand:
SKF
01011974
EAN:
7316570903034
Supplier number:
SKF 6305-2Z/C3MT33
Inner diameter
25 mm
Width
17 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
62 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
11.6 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
24,000 r/min
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Class P6 (P6)
Basic dynamic load rating
23.4 kN
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
13,000 r/min
Bore diameter
25 mm
Coating
Without
Outside diameter
62 mm
