SKF

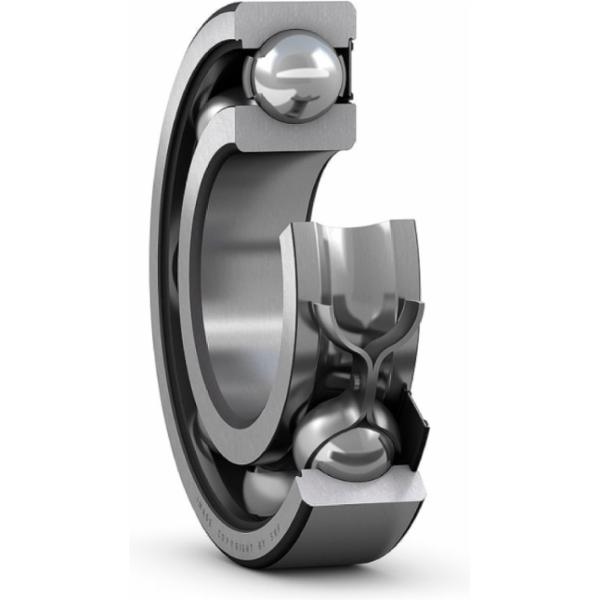

SKF 61903-RS1 single-row groove ball bearing cylindrical 17x30x7 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 7 mm
  • Number of rows: 1
  • Seal (bearing): Single-sided sealed
  • Material (bearing seal): Rubber
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 30 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570703436
  • Supplier number: SKF 61903-RS1
Inner diameter
17 mm
Width
7 mm
Number of rows
1
Seal (bearing)
Single-sided sealed
Material (bearing seal)
Rubber
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
30 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
2.55 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
50,000 r/min
Lubricant
None
Sealing type
Contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
4.62 kN
Locating feature, bearing outer ring
None
Sealing
Seal on one side
Limiting speed
32,000 r/min
Bore diameter
17 mm
Coating
Without
Outside diameter
30 mm
