SKF

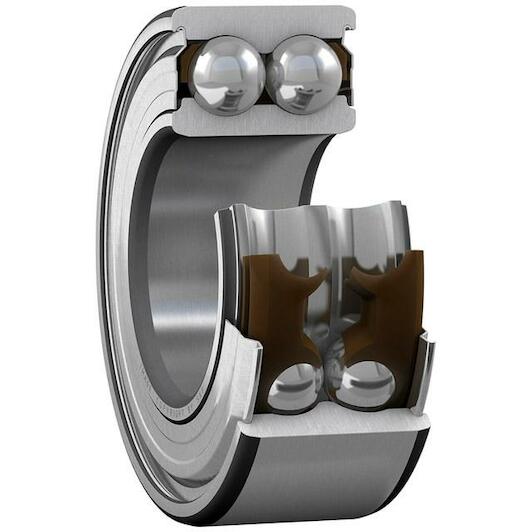

SKF 3305 A-2ZTN9/MT33 double-row angular contact ball bearing 25 x 62 x 25.4 mm with 30° contact angle

Recommended Retail Price €203.38
100.60 tax incl.
€83.14 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Delivery by DHL

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 25,4 mm
  • Number of rows: 2
  • Axial clearance: CN (Normal)
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Material (cage): Plastic
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570807530
  • Supplier number: SKF 3305 A-2ZTN9/MT33
Inner diameter
25 mm
Width
25,4 mm
Number of rows
2
Axial clearance
CN (Normal)
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Material (cage)
Plastic
Outer diameter
62 mm
Relubrication feature
Without
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
22
Matched arrangement
No
Sealing type
Non-contact
Reference speed
11000
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing
Shield on both sides
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
25
Arrangement of contact angle (double-row bearing)
Back-to-back (O)
Axial internal clearance
CN
Contact angle
30
Limiting speed
11000
Basic dynamic load rating
32.5
Coating
Without
Outside diameter
62
Universal matching bearing
No
