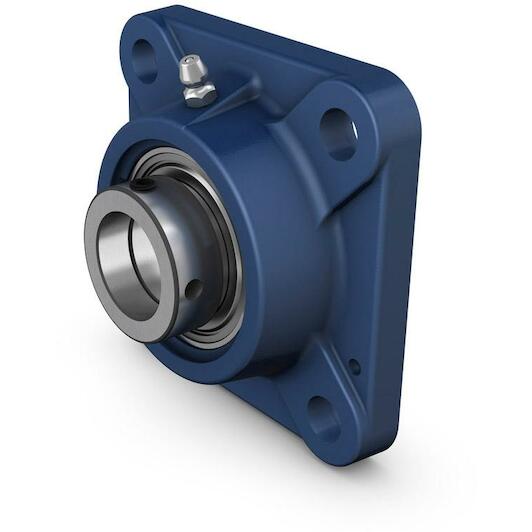

SKF FY 1.1/4 WF Y ball bearing unit with flange square, d 31.75 mm, A 34.5 mm, J 92 mm

Show more features

Shaft diameter

31,75 mm

Split

No

Material (bearing housing)

Stainless steel

Material (bearing)

Steel

High temperature

No

Bore type

Cylindrical

Shape (bearing housing)

Square

Number of bolt holes for fasteners

4

Retaining feature, inner ring

Eccentric collar

Bearing width, total

51.1 mm

Material, housing

Cast iron

Basic static load rating

15.3 kN

Sealing, bearing

Seal and flinger on both sides

Lubricant

Grease

Rubber seating ring

Without

Sealing type

Contact, standard

Grease fitting

With

Material, bearing

Bearing steel

Flanged housing type

Square

Centre distance between bolt holes

92 mm

Limiting speed

5,300 r/min

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Optional end cover

Width, total

53.3 mm

Fastening bolt hole type

Plain

Relubrication hole

With

Housing overall width

34.5 mm

Basic dynamic load rating

25.5 kN

Coating

Without

Housing type

Flanged
