What are the exact dimensions of this SKF cylindrical roller bearing?

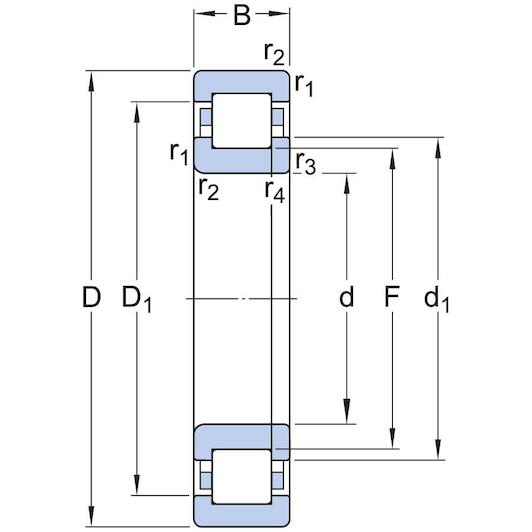

This bearing has a bore diameter of 25 mm, an outer diameter of 62 mm, and a width of 24 mm.

Can the NUP design accommodate axial loads?

Yes, with two integral flanges on the outer ring, one on the inner ring, and a loose flange ring, it locates the shaft axially in both directions.

What material is used for the cage?

The ECP suffix indicates a glass-fibre reinforced polyamide cage (non-metallic).

What internal radial clearance does this bearing have?

This bearing features standard normal radial internal clearance (designated as CN).

Is this SKF bearing sealed or pre-lubricated?

No, this is an open bearing without seals and comes without lubricant.

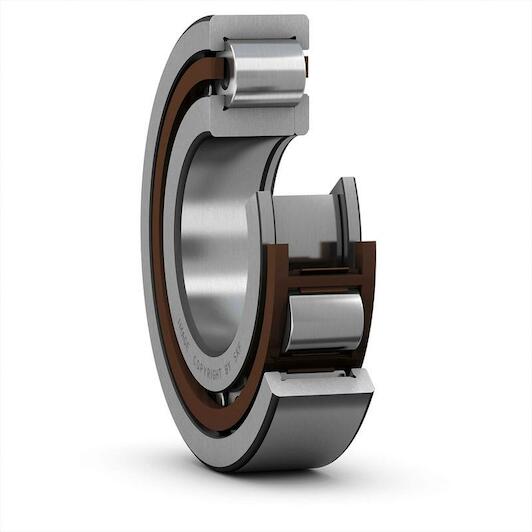

SKF NUP 2305 ECP single-row cylindrical roller bearing 25 x 62 x 24 mm

Supplier number: SKF NUP 2305 ECP | EAN 7316577031419

Recommended Retail Price €229.45

113.40 tax incl.

€93.72 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy radial load support with Skf

Practical benefits

High radial load capacity: You effortlessly handle high radial loads at high speeds thanks to the optimized cylindrical roller construction.
Dual direction axial location: Through the NUP design, you securely fix and guide shafts axially in both directions.
Quick and easy mounting: Thanks to the separable bearing design, you mount and inspect components independently with ease.

In a nutshell

The right choise for

With the Skf nup 2305 ecp single row cylindrical roller bearing, you handle heavy radial loads in demanding industrial machinery, electric motors, and gearboxes. Thanks to the nup design with a loose flange ring, you reliably locate and guide the shaft axially in both directions. The glass-fibre reinforced plastic cage reduces operational friction and heat generation, delivering high stiffness and running accuracy under heavy duty stress. With its separable bearing design and normal radial internal clearance CN, you mount and inspect components independently with ease during maintenance. Measuring 25 x 62 x 24 mm, this open bearing keeps your pumps, drives, and continuous production lines running smoothly.

Product information FAQ

€113.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 24 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 24 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: Inner ring loose flange
Basic static load rating: 55
Cage: Non-metallic
Reference speed: 12000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 15000
Bore diameter: 25
Basic dynamic load rating: 64
Coating: Without
Outer diameter: 62
Axial displacement capability: None

Brand SKF
01070699
EAN 7316577031419
Supplier number SKF NUP 2305 ECP

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF cylindrical roller bearing?: This bearing has a bore diameter of 25 mm, an outer diameter of 62 mm, and a width of 24 mm.
Can the NUP design accommodate axial loads?: Yes, with two integral flanges on the outer ring, one on the inner ring, and a loose flange ring, it locates the shaft axially in both directions.
What material is used for the cage?: The ECP suffix indicates a glass-fibre reinforced polyamide cage (non-metallic).
What internal radial clearance does this bearing have?: This bearing features standard normal radial internal clearance (designated as CN).
Is this SKF bearing sealed or pre-lubricated?: No, this is an open bearing without seals and comes without lubricant.
