SKF

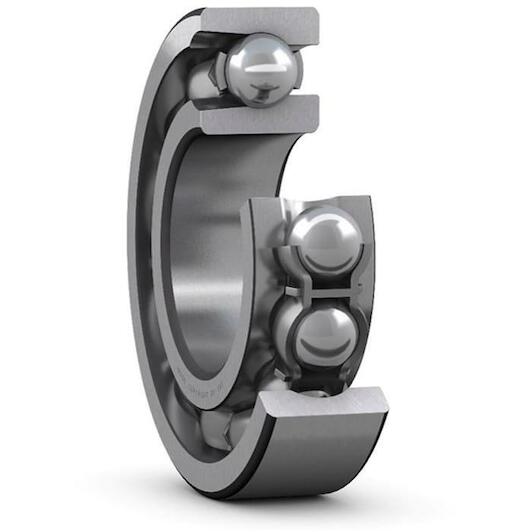

SKF 206 single-row groove ball bearing cylindrical 30x62x16 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 16 mm
  • Number of rows: 1
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576679452
  • Supplier number: SKF 206
Inner diameter
30 mm
Width
16 mm
Number of rows
1
Outer diameter
62 mm
Locating feature, bearing outer ring
None
Material, bearing
Bearing steel
Cage
Sheet metal
Lubricant
None
Reference speed
20,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
16.3 kN
Radial internal clearance
CN
Tolerance class
Normal
Filling slots
With
Bore diameter
30 mm
Sealing
Without
Limiting speed
12,000 r/min
Basic dynamic load rating
20.9 kN
Coating
Without
Outside diameter
62 mm
Bore type
Cylindrical
