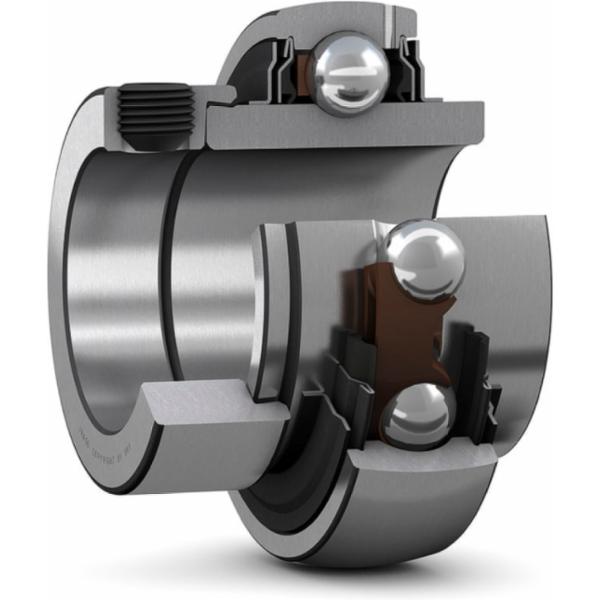

SKF YEL 204-012-2F Y insert bearing cylindrical with set screw for metric shaft, 19.05 x 47 mm

SKF
Supplier number: SKF YEL 204-012-2F | EAN 7316577758217
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 19,05 mm
  • Width: 34,2 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 47 mm

Product description:

  • Self-aligning thrust washer bearing for harsh conditions
  • Fixation on shaft by means of eccentric ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides

All Features

Inner diameter
19,05 mm
Width
34,2 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
47 mm
Lubricant
Grease
Retaining feature, inner ring
Eccentric collar
Basic static load rating
6.55 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
14 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Note
Limiting speed with shaft tolerance h6
Width, total
43.7 mm
Width, inner ring
34.2 mm
Limiting speed
8,500 r/min
Bore diameter
19.05 mm
Basic dynamic load rating
12.7 kN
Coating
Without
Outer diameter
47 mm
Rolling elements
Balls
  • Brand SKF
  • EAN 7316577758217
  • Supplier number SKF YEL 204-012-2F
