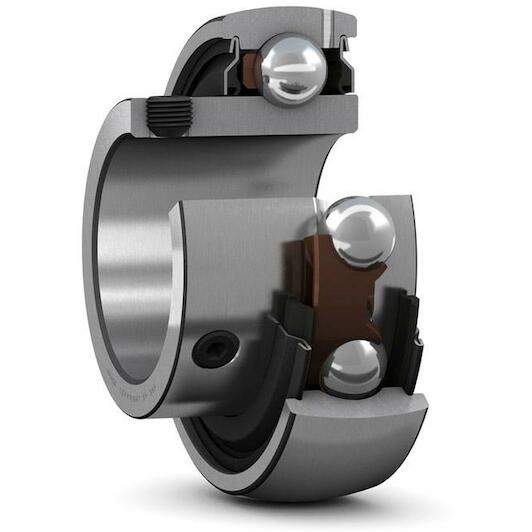

SKF YAT 206 Y insert bearing cylindrical with set screw for metric shaft, 30 x 62 mm

Recommended Retail Price €57.02

28.20 tax incl.

€23.30 excl. VAT (incl. all environmental contributions)

SKF YAT 206 Y insert bearing cylindrical with set screw for metric shaft, 30 x 62 mm

€28.20 Recommended Retail Price €57.02

On stock, immediately available.

each

Delivery by DHL

Product information
Additional info

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Key features according to our expert

Inner diameter: 30 mm
Width: 30,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 62 mm

Specifications / All features

Brand: SKF
01190705
EAN: 7316570076837
Supplier number: SKF YAT 206

Inner diameter: 30 mm
Width: 30,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 62 mm
Width, outer ring: 18
Basic static load rating: 11.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 6300
Outer ring type: Spherical
Width, total: 30.2
Width, inner ring: 30.2
Shaft diameter: 30
Bore diameter: 30
Basic dynamic load rating: 19.5
Coating: Without
Outside diameter: 62
Note: Limiting speed with shaft tolerance h6
