What shaft diameter is this insert bearing suitable for?

This bearing is suitable for a metric shaft with a diameter of 30 mm.

How is this bearing mounted to the shaft?

You mount the bearing securely to the shaft using the eccentric locking collar.

What are the outer dimensions of this bearing?

The bearing has an outer diameter of 62 mm and an inner ring width of 23.8 mm.

Is this insert bearing suitable for reversing rotational directions?

No, bearings with an eccentric collar are designed for applications with a constant direction of rotation.

What materials are used in this bearing?

The bearing is made of steel and features a plastic cage.

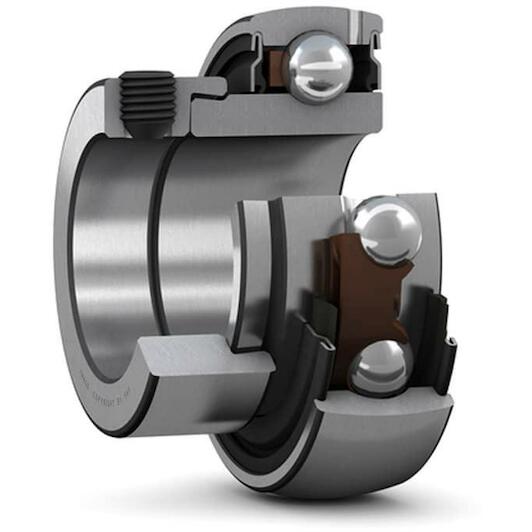

SKF YET 206 Y insert bearing cylindrical with eccentric ring for metric shaft, 30 x 62 mm

Supplier number: SKF YET 206 | EAN 7316577035639

Recommended Retail Price €77.82

38.40 tax incl.

€31.73 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with eccentric collar locking

Practical benefits

Fast and secure mounting: You lock the bearing firmly onto a 30 mm shaft using the integrated eccentric collar.
Quiet and smooth operation: The non-metallic cage and steel balls ensure low friction and reduced vibration during continuous rotation.
Compact Skf YET 206 design: A narrow inner ring and 62 mm outer diameter allow easy integration in confined spaces.

In a nutshell

The right choise for

With the Skf yet 206 insert bearing, you ensure reliable and stable shaft support across industrial machinery, conveyor systems, and agricultural equipment. Thanks to the practical eccentric locking collar, you can secure the bearing firmly onto a 30 mm cylindrical metric shaft without any shaft machining. The durable steel balls and lightweight plastic cage minimize friction and vibration during constant-direction rotation. Featuring a 62 mm outer diameter and a narrow 23.8 mm inner ring, this compact bearing fits smoothly into compatible housings for straightforward assembly and maintenance.

Product information FAQ

€38.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 23,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 62 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

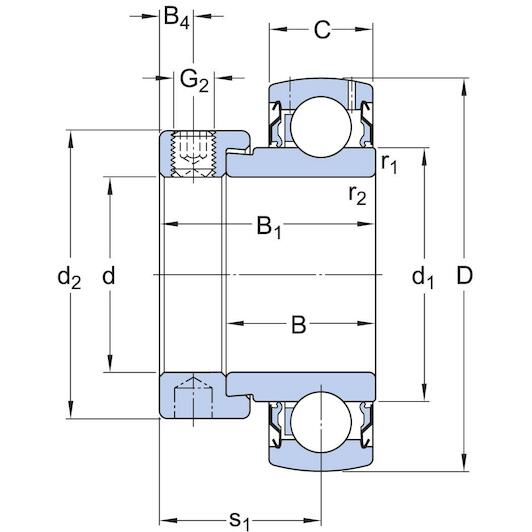

All Features

Inner diameter: 30 mm
Width: 23,8 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 62 mm
Width, outer ring: 18
Basic static load rating: 11.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 6300
Outer ring type: Spherical
Width, total: 35.7
Width, inner ring: 23.8
Shaft diameter: 30
Bore diameter: 30
Basic dynamic load rating: 19.5
Coating: Without
Outer diameter: 62
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190048
EAN 7316577035639
Supplier number SKF YET 206

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing suitable for?: This bearing is suitable for a metric shaft with a diameter of 30 mm.
How is this bearing mounted to the shaft?: You mount the bearing securely to the shaft using the eccentric locking collar.
What are the outer dimensions of this bearing?: The bearing has an outer diameter of 62 mm and an inner ring width of 23.8 mm.
Is this insert bearing suitable for reversing rotational directions?: No, bearings with an eccentric collar are designed for applications with a constant direction of rotation.
What materials are used in this bearing?: The bearing is made of steel and features a plastic cage.
