SKF

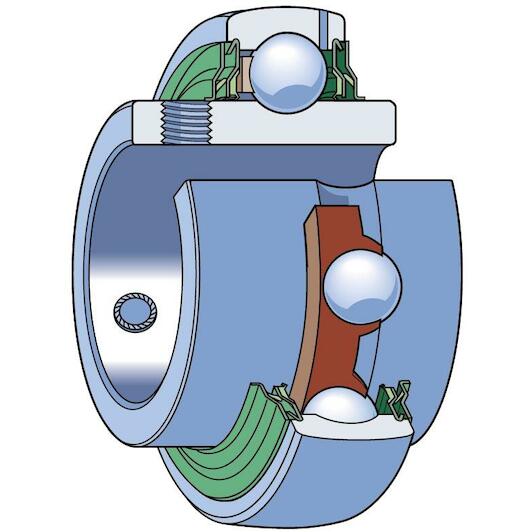

SKF YAR 205-2RF/VE495 Y insert bearing cylindrical with set screw for metric shaft, 25 x 52 mm - YAR205-2RS/VE495 SKF

This article is not available

Product description:

  • SKF self-aligning thrust washer bearing for heavy duty (2F) or very heavy duty (-2RF) conditions.
  • Fixation on shaft by means of two socket-head screws on extended inner ring
  • Spherical outer ring with lubrication holes and inner ring extended on both sides
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 34,1 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316574862115
  • Supplier number: SKF YAR205-2RS/VE495 SKF
Inner diameter
25 mm
Width
34,1 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
52 mm
Lubricant
Grease
Retaining feature, inner ring
Set screws
Basic static load rating
7.8 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
15 mm
Sealing type
Contact, multiple
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Limiting speed
4,300 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
34.1 mm
Width, inner ring
34.1 mm
Bore diameter
25 mm
Basic dynamic load rating
14 kN
Coating
Zinc-coated rings
Outside diameter
52 mm
Rolling elements
Balls
