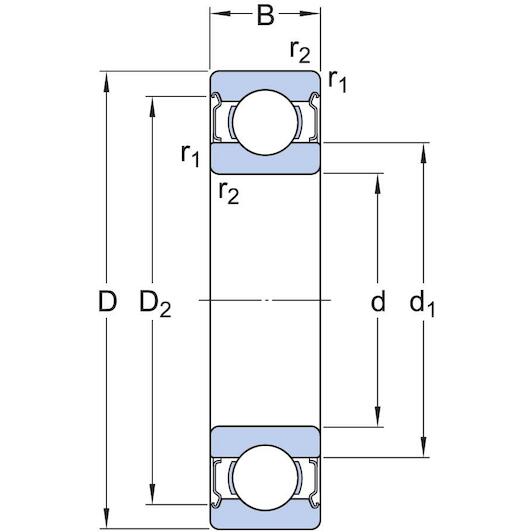

What are the dimensions of this SKF ball bearing?

The bearing has an inside diameter of 12 mm, an outside diameter of 24 mm, and a width of 6 mm.

What protection does the 2Z designation provide?

The 2Z code indicates metal shields on both sides to keep lubricant inside and block contaminants.

Why choose a stainless steel bearing?

Stainless steel provides high resistance to corrosion and moisture in demanding environments.

What internal clearance does the SKF W 61901-2Z have?

This bearing features standard radial internal clearance (CN).

What bore type does this deep groove ball bearing have?

It features a standard cylindrical 12 mm bore for direct mounting on straight shafts.

SKF W 61901-2Z single-row groove ball bearing cylindrical 12x24x6 mm

Supplier number: SKF W 61901-2Z | EAN 7316570534580

Recommended Retail Price €56.92

27.95 tax incl.

€23.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth performance in demanding environments

Practical benefits

High resistance to corrosion: Made from stainless steel, the W 61901-2Z deep groove ball bearing resists moisture and chemicals effectively.
Integrated double metal shields: Built-in shields keep lubricant inside while preventing dirt and contaminants from entering the rolling elements.
Low friction and vibration: You achieve quiet operation while handling radial and axial loads reliably in compact spaces.

In a nutshell

The right choise for

Keep your machinery and drives operating smoothly in damp or corrosive environments with the Skf w 61901-2Z stainless steel deep groove ball bearing. Its stainless steel construction provides dependable protection against rust and premature wear. Featuring integrated double metal 2Z shields, it effectively retains lubricant while keeping out dust and foreign particles. With compact dimensions of 12X24X6 mm and a standard 12 mm cylindrical bore, you can mount it directly and precisely onto straight shafts. You achieve quiet, low-friction operation that keeps maintenance downtime to a minimum.

Product information FAQ

€27.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Stainless steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm

Product description

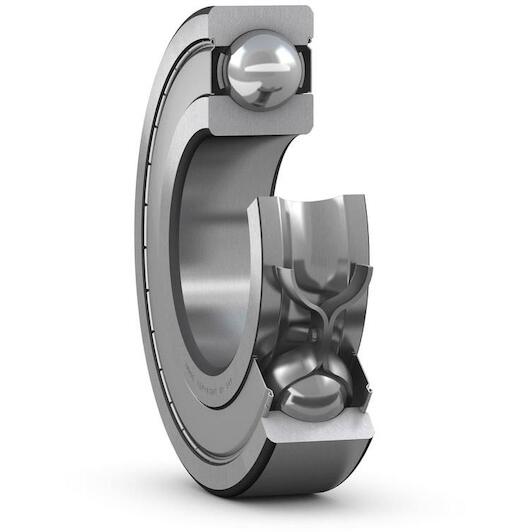

Stainless steel single row deep groove ball bearing with seals or shields on both sides, provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Greater chemical and corrosion resistance
Integral sealing prolongs bearing service life
Typical benefits of single row deep groove ball bearings

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 6 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Stainless steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 1.46
Material, bearing: Stainless steel
Relubrication feature: Without
Reference speed: 67000
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Shield on both sides
Limiting speed: 32000
Bore diameter: 12
Basic dynamic load rating: 2.51
Outer diameter: 24

Brand SKF
01010453
EAN 7316570534580
Supplier number SKF W 61901-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has an inside diameter of 12 mm, an outside diameter of 24 mm, and a width of 6 mm.
What protection does the 2Z designation provide?: The 2Z code indicates metal shields on both sides to keep lubricant inside and block contaminants.
Why choose a stainless steel bearing?: Stainless steel provides high resistance to corrosion and moisture in demanding environments.
What internal clearance does the SKF W 61901-2Z have?: This bearing features standard radial internal clearance (CN).
What bore type does this deep groove ball bearing have?: It features a standard cylindrical 12 mm bore for direct mounting on straight shafts.
