SKF

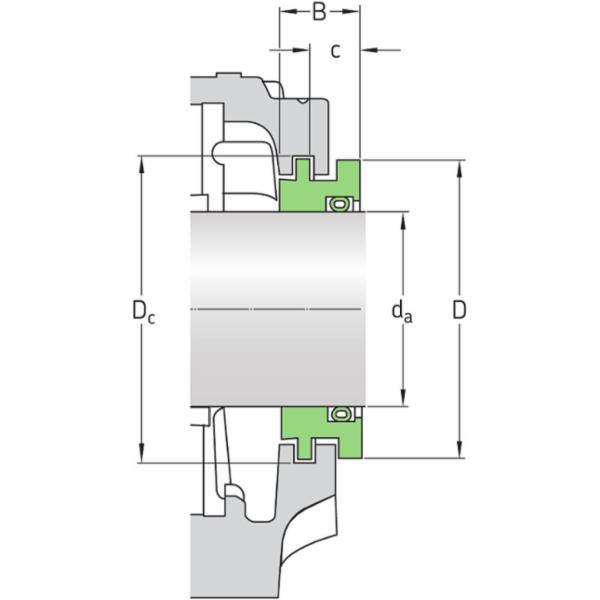

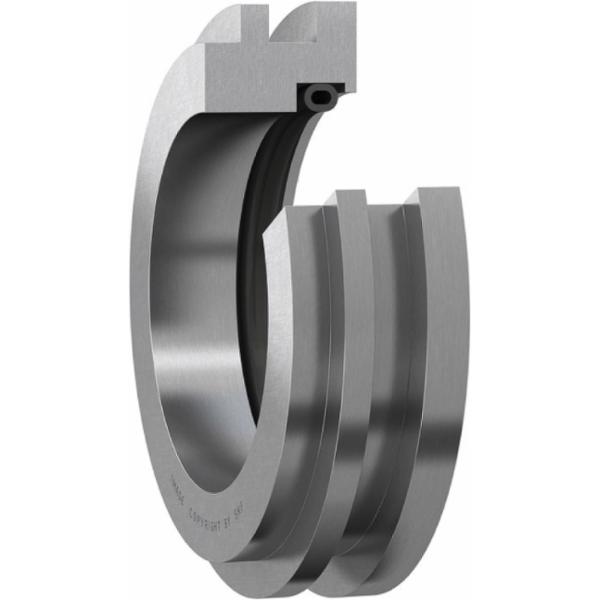

SKF TSN 320 S Labyrinth bearing housing seal

This article is not available

Product description:

  • Single or multiple labyrinth seals are more effective than simple gap seals, but are more expensive
  • They are mainly used in grease lubrication
  • Their effectiveness can be increased by regularly applying a water-insoluble grease, e.g. a lithium calcium soap grease, through a channel into the labyrinth
  • The edges of the labyrinth are directed axially for undivided houses and radially for divided houses
  • The width of the axial gap in the labyrinth remains unchanged when the shaft moves axially during operation and can therefore be very small
  • When misalignment of the shaft occurs with respect to the house, labyrinths with a sloping profile are used
Key features according to our expert
  • Inner diameter: 115 mm
  • Outer diameter: 165 mm
  • Width: 24 mm
  • Type of seal: Labyrinth seal
Specifications / All features
  • Brand: SKF
  • EAN: 7316570516081
  • Supplier number: SKF TSN 320 S
Inner diameter
115 mm
Outer diameter
165 mm
Width
24 mm
Type of seal
Labyrinth seal
Outside diameter
165 mm
Material
Steel with silicone element
Shaft diameter
115 mm
Housing groove diameter
167.5 mm
Sealing type
Labyrinth
Accessory type
Housing seal
