skf_t4ee160vb406
SKF

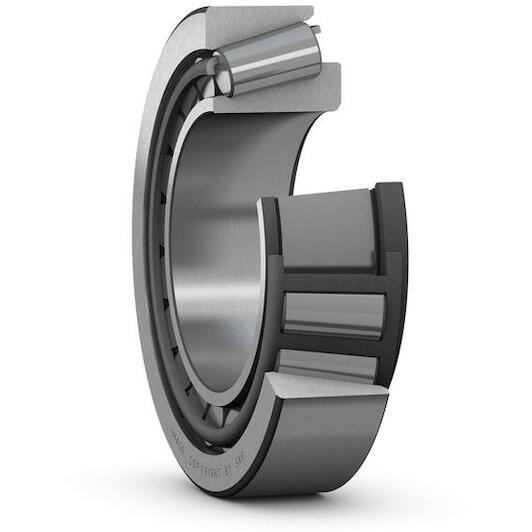

SKF T4EE 160/VB406 1-row tapered roller bearing 160 mm

Recommended Retail Price €3,793.04
1,877.80 tax incl.
€1,551.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Delivery by DHL

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 160 mm
  • Number of rows: 1
  • Outer diameter: 245 mm
  • Width: 61 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570245158
  • Supplier number: SKF T4EE 160/VB406
Inner diameter
160 mm
Number of rows
1
Outer diameter
245 mm
Width
61 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
50
Lubricant
None
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
2000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
980
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Skf performance class
SKF Explorer
Width, inner ring
59
Width, total
61
Contact angle
16.616666666708
Limiting speed
2400
Bore diameter
160
Basic dynamic load rating
649
Coating
Without
Outside diameter
245
Unit system
Metric
