What are the exact dimensions of this SKF NUTR 45100 A support roller?

The support roller has an outside diameter of 100 mm, a bore diameter of 45 mm, and a total width of 32 mm.

What running surface profile does the outer ring feature?

This model features a crowned outer ring running surface to optimize load distribution.

Can this support roller be relubricated?

Yes, the inner ring includes a lubrication hole for straightforward relubrication.

What applications is this roller designed for?

It is designed for heavy radial loads in cam drives, track systems, and conveyor mechanisms.

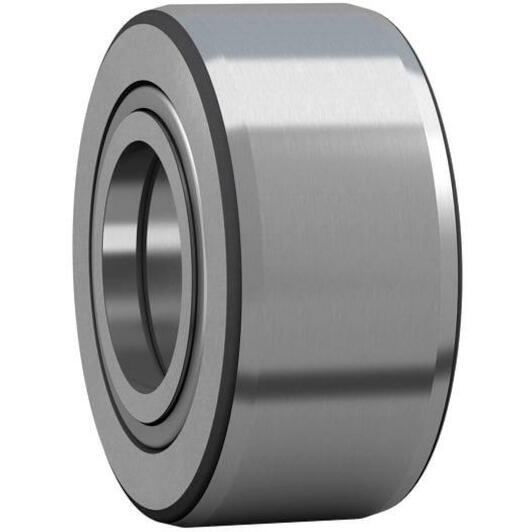

SKF NUTR 45100 A support roller with inner ring and flange seal (Yoke type track roller) 100 x 45 x 32 mm

Supplier number: SKF NUTR 45100 A | EAN 7316570148640

Recommended Retail Price €491.01

242.40 tax incl.

€200.33 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable tracking with Skf

Practical benefits

High radial load capacity: You easily handle heavy radial loads and tilting forces thanks to the full complement cylindrical roller design.
Protection against contamination: The integrated labyrinth seals protect the internal components against debris to ensure smooth and dependable operation.
Fast relubrication access: You can easily regrease the bearing through the inner ring lubrication hole to extend service life.

In a nutshell

The right choise for

With the Skf nutr 45100 a support roller, you ensure dependable motion and tracking in demanding industrial machinery. Designed with a full complement of cylindrical rollers, it effortlessly handles heavy radial loads and axial forces in cam drives, track systems, and conveyors. The crowned outer ring promotes optimal load distribution along rails to reduce stress and wear. Integrated labyrinth seals keep dirt and contaminants out of the bearing, while the convenient lubrication hole in the inner ring allows for fast relubrication during maintenance, keeping your mechanical systems running smoothly for longer.

Product information FAQ

€242.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 32 mm
Outer diameter: 100 mm

Product description

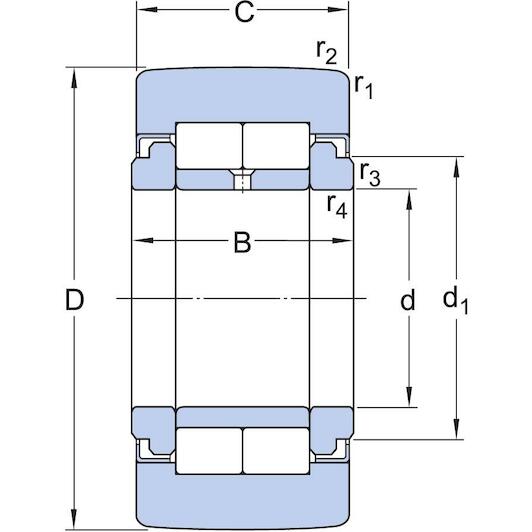

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with an improved crowned running surface. They are supplied sealed and ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication.

High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 32 mm
Outer diameter: 100 mm
Axial guidance of outer ring: Yes
Rolling elements: Cylindrical rollers
Functional outside diameter: 100
Material, bearing: Bearing steel
Cage: Without
Sealing type: Labyrinth
Width, outer ring: 30
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 104
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 32
Outer ring profile: Crowned
Limiting speed: 1700
Bore diameter: 45
Number of rows: 2
Basic dynamic load rating: 73.7
Coating: Without
Application: Support roller

Brand SKF
01211072
EAN 7316570148640
Supplier number SKF NUTR 45100 A

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF NUTR 45100 A support roller?: The support roller has an outside diameter of 100 mm, a bore diameter of 45 mm, and a total width of 32 mm.
What running surface profile does the outer ring feature?: This model features a crowned outer ring running surface to optimize load distribution.
Can this support roller be relubricated?: Yes, the inner ring includes a lubrication hole for straightforward relubrication.
What applications is this roller designed for?: It is designed for heavy radial loads in cam drives, track systems, and conveyor mechanisms.
