SKF

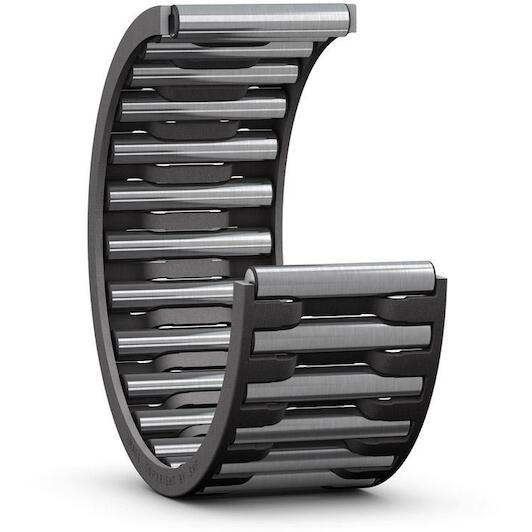

SKF K 15X19X17 single-row needle roller bearing 15 x 19 x 17 mm

Recommended Retail Price €16.56
7.95 tax incl.
€6.57 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Delivery by DHL

Product description

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.

  • High radial load carrying capacity
  • High stiffness
  • High precision
  • Lowest cross-sectional height among rolling bearings
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 17 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Outer diameter: 19 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577124067
  • Supplier number: SKF K 15X19X17
Inner diameter
15 mm
Width
17 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Outer diameter
19 mm
Basic static load rating
15.6
Bearing part
Needle roller and cage assembly
Tolerance class
Normal
Aligning feature
Without
Reference speed
24000
Bore diameter of needle roller complement
15
Relubrication feature
Without
Outside diameter of needle roller complement
19
Lubricant
None
Cage
Sheet steel
Sealing
Without
Number of rows
1
Outer ring type
Not applicable
Limiting speed
28000
Basic dynamic load rating
10.8
Coating
Without
Outside diameter
19
Material, bearing
Bearing steel
