What are the dimensions of this needle roller bearing?

This bearing has an inside diameter of 25 mm, an outside diameter of 33 mm, and a width of 20 mm.

Does this bearing include an inner ring?

No, the SKF NK 25/20 is designed without an inner ring to run directly on a hardened and ground shaft.

What material is the bearing cage made from?

The cage is made of sheet steel to reliably guide the needle rollers.

Is this SKF needle roller bearing sealed?

No, it has an open configuration without seals, suitable for external lubrication systems.

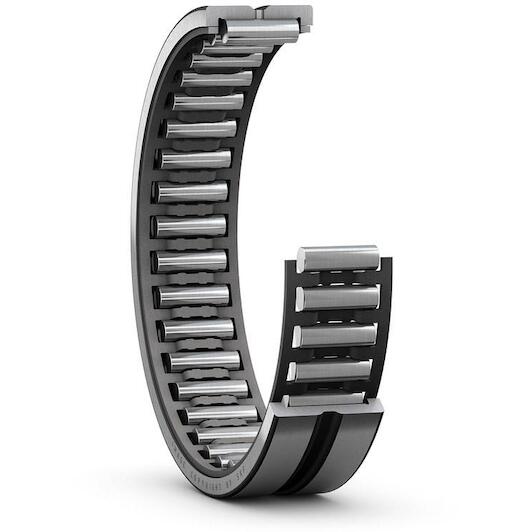

SKF NK 25/20 needle roller bearing without inner ring 25x33x20 mm

Supplier number: SKF NK 25/20 | EAN 7316577012579

Recommended Retail Price €59.17

29.20 tax incl.

€24.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact support for high radial loads

Practical benefits

Space-saving shaft integration: By running directly on a hardened shaft without an inner ring, you achieve a minimal cross-sectional mounting height.
High radial load capacity: The Skf NK 25/20 machined needle roller design delivers outstanding rigidity to handle demanding radial forces with ease.
Easy relubrication and guidance: Integral flanges keep the rollers axially aligned while dedicated lubrication features allow for smooth routine maintenance.

In a nutshell

The right choise for

With the Skf nk 25/20 single row needle roller bearing, you achieve an extremely compact bearing arrangement for demanding radial loads in gearboxes, drive systems, and machine engineering. Engineered without an inner ring, this needle roller bearing runs directly on a 25 mm hardened and ground shaft, saving valuable installation space and weight. The machined outer ring with a 33 mm outside diameter and 20 mm width, combined with a strong sheet steel cage, ensures exceptional rigidity and high radial load carrying capacity. Integrated flanges keep the needle rollers precisely aligned axially, while the open design without seals allows for straightforward lubrication through your system.

Product information FAQ

€29.20

In stock - tax incl.

Key features according to our expert

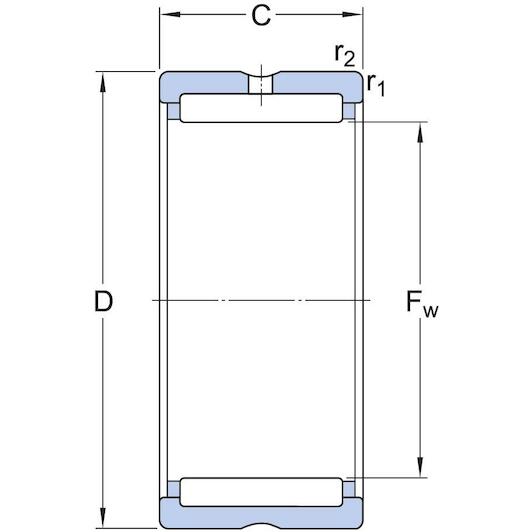

Inner diameter: 25 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 33 mm

Product description

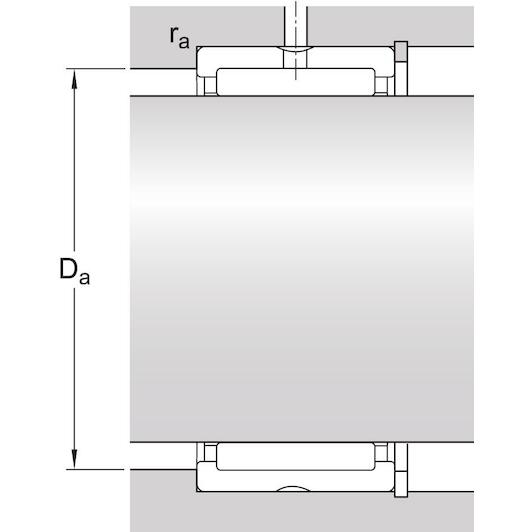

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 33 mm
Basic static load rating: 32.5
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Reference speed: 16000
Bore diameter of needle roller complement: 25
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 19
Outer ring type: Machined (solid)
Limiting speed: 18000
Coating: Without
Outer diameter: 33
Material, bearing: Bearing steel

Brand SKF
01290076
EAN 7316577012579
Supplier number SKF NK 25/20

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: This bearing has an inside diameter of 25 mm, an outside diameter of 33 mm, and a width of 20 mm.
Does this bearing include an inner ring?: No, the SKF NK 25/20 is designed without an inner ring to run directly on a hardened and ground shaft.
What material is the bearing cage made from?: The cage is made of sheet steel to reliably guide the needle rollers.
Is this SKF needle roller bearing sealed?: No, it has an open configuration without seals, suitable for external lubrication systems.
