SKF

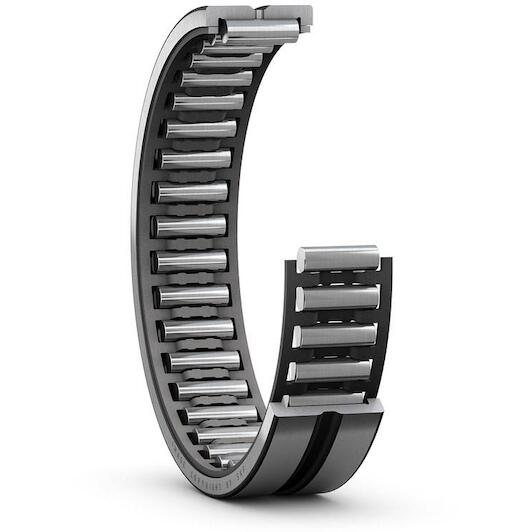

SKF RNA 4900 needle roller bearing without inner ring 14x22x13 mm

Recommended Retail Price €47.46
23.20 tax incl.
€19.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Delivery by DHL

Product description

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 14 mm
  • Width: 13 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Sheet steel
  • Outer diameter: 22 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577115621
  • Supplier number: SKF RNA 4900
Inner diameter
14 mm
Width
13 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Sheet steel
Outer diameter
22 mm
Basic static load rating
10.4
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Reference speed
24000
Bore diameter of needle roller complement
14
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet steel
Sealing
Without
Basic dynamic load rating
8.8
Outer ring type
Machined (solid)
Limiting speed
28000
Coating
Without
Outside diameter
22
Material, bearing
Bearing steel
