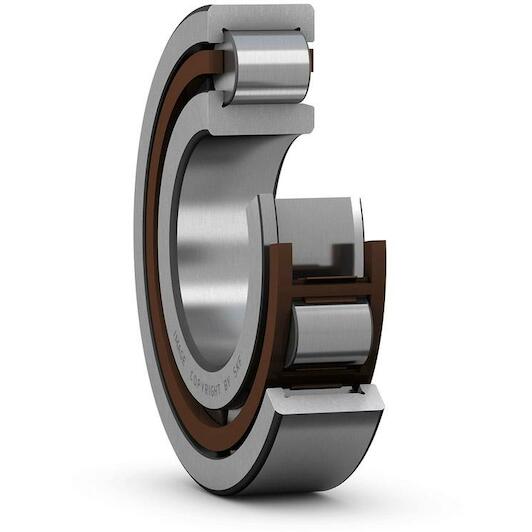

SKF NJ 206 ECP Single-row cylindrical roller bearing 30 x 62 x 16 mm

Supplier number: SKF NJ 206 ECP | EAN 7316577022318

Recommended Retail Price €129.20

63.80 tax incl.

€52.73 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

High radial load capacity: You accommodate heavy radial forces reliably thanks to the sturdy single-row roller design.
One-direction axial support: The integrated NJ design allows you to locate the shaft precisely in one axial direction.
Fast and separable mounting: You install and inspect your machinery quickly because the inner ring separates easily.

In a nutshell

The right choise for

With the Skf nj 206 ecp single-row cylindrical roller bearing, you support heavily loaded rotating shafts in electric motors, industrial gearboxes, and pumps with precision and reliability. Its sturdy roller configuration effortlessly accommodates high radial forces, while the smart nj design provides dependable axial shaft location in one direction. The glass-fibre reinforced polyamide cage effectively reduces friction, heat generation, and operating noise under demanding rotational speeds. In addition, the separable ring design allows for fast, hassle-free mounting and maintenance. Featuring dimensions of 30 x 62 x 16 mm and standard normal radial internal clearance CN, this open bearing keeps your industrial machinery running smoothly.

Product information FAQ

€63.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 36.5
Cage: Non-metallic
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 14000
Bore diameter: 30
Basic dynamic load rating: 44
Coating: Without
Outside diameter: 62
Axial displacement capability: In one direction

Brand SKF
01070005
EAN 7316577022318
Supplier number SKF NJ 206 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: This bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 16 mm.
What types of load can the NJ design accommodate?: The NJ design handles heavy radial loads and accommodates axial displacement in one direction.
What material is the cage made of?: The ECP version is equipped with a glass-fibre reinforced polyamide (plastic) cage.
Does this SKF bearing have integrated seals?: No, this is an open bearing without seals and is suitable for oil or grease lubrication.
What radial internal clearance does this bearing have?: This bearing features standard normal radial internal clearance (CN).
