What are the dimensions of this bearing?

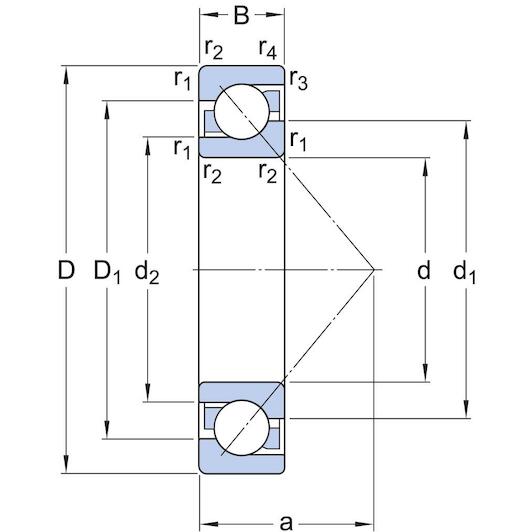

This SKF bearing has a 30 mm bore diameter, a 72 mm outer diameter, and a width of 19 mm.

What loads can the SKF 7306 BECBP accommodate?

With a 40° contact angle, it accommodates combined radial loads and heavy axial loads acting in one direction.

What material is the cage made of?

This bearing features a cage made from glass-fibre reinforced polyamide (non-metallic).

Is this angular contact ball bearing sealed?

No, this is an open bearing without seals, designed for external oil or grease lubrication.

Can this bearing be mounted in pairs?

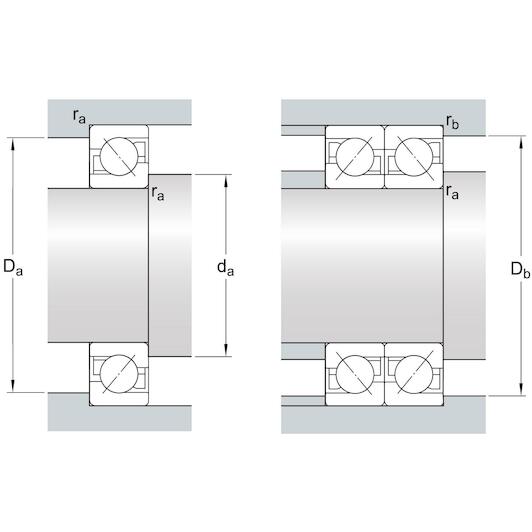

Yes, the BECBP design is suited for universal matching in pairs (back-to-back, face-to-face, or in tandem).

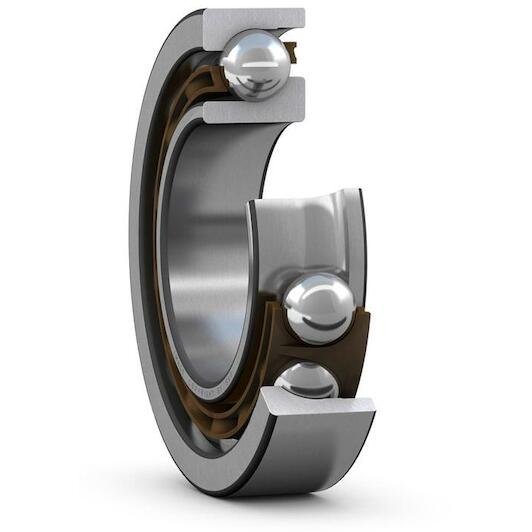

SKF 7306 BECBP single-row angular contact ball bearing 30 x 72 x 19 mm with contact angle 40°

Supplier number: SKF 7306 BECBP | EAN 7316576633850

Recommended Retail Price €160.59

79.40 tax incl.

€65.62 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with Skf

Practical benefits

High combined load capacity: With a 40° contact angle, you reliably support heavy simultaneous radial forces and unidirectional axial loads.
Lightweight polymer cage design: The reinforced polyamide cage minimizes internal friction, helping you achieve smooth operation at high rotational speeds.
Smooth and stable running: Optimized internal geometry reduces vibration and wear, giving you longer service life for demanding machine shafts.

In a nutshell

The right choise for

With the Skf 7306 becbp angular contact ball bearing, you ensure reliable power transmission and smooth rotation for demanding drive shafts. Featuring a 40° contact angle, this single-row bearing accommodates high radial forces and heavy unidirectional axial loads simultaneously. Its glass-fibre reinforced polyamide cage reduces friction, heat buildup, and overall weight, allowing quiet operation at high rotational speeds. Measuring 30 x 72 x 19 mm and designed for universal matching in pairs, this open bearing is an ideal solution for industrial pumps, compressors, gearboxes, and machine-tool spindles.

Product information FAQ

€79.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 19 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 72 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 19 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 72 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 21.2
Lubricant: None
Relubrication feature: Without
Reference speed: 12000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 30
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 13000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 35.5
Coating: Without
Outer diameter: 72
Universal matching bearing: Yes

Brand SKF
01050149
EAN 7316576633850
Supplier number SKF 7306 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: This SKF bearing has a 30 mm bore diameter, a 72 mm outer diameter, and a width of 19 mm.
What loads can the SKF 7306 BECBP accommodate?: With a 40° contact angle, it accommodates combined radial loads and heavy axial loads acting in one direction.
What material is the cage made of?: This bearing features a cage made from glass-fibre reinforced polyamide (non-metallic).
Is this angular contact ball bearing sealed?: No, this is an open bearing without seals, designed for external oil or grease lubrication.
Can this bearing be mounted in pairs?: Yes, the BECBP design is suited for universal matching in pairs (back-to-back, face-to-face, or in tandem).
