What are the dimensions of this angular contact ball bearing?

The bearing has a 25 mm bore diameter, a 52 mm outer diameter, and a 15 mm width.

What loads can the SKF 7205 BECBP accommodate?

This single row angular contact ball bearing accommodates simultaneous radial and axial loads acting in one direction.

What is the advantage of the 40° contact angle?

The 40° contact angle provides higher axial load carrying capacity compared to standard deep groove ball bearings.

What material is used for the cage?

This bearing features a cage made of glass-fibre reinforced polyamide (plastic).

Does this SKF bearing come with seals?

No, this is an open bearing without seals, designed for external grease or oil lubrication.

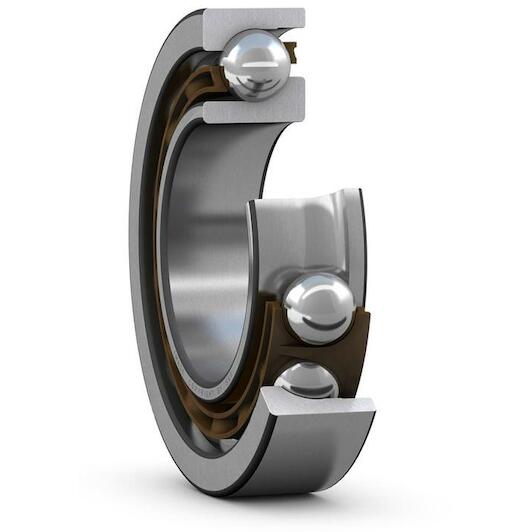

SKF 7205 BECBP single-row angular contact ball bearing 25 x 52 x 15 mm with contact angle 40°

Supplier number: SKF 7205 BECBP | EAN 7316577149718

Recommended Retail Price €133.56

65.95 tax incl.

€54.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

High axial capacity: The 40° contact angle allows you to easily support heavy unilateral axial loads combined with radial forces.
Smooth high-speed operation: The lightweight polymer cage reduces friction so you achieve stable and efficient running at high rotational speeds.

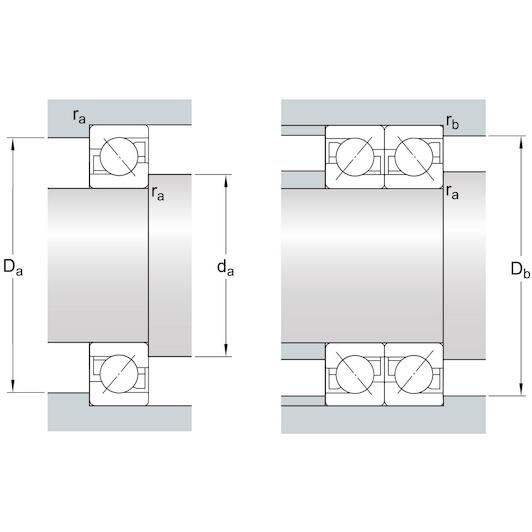

Easy universal matching: You can install this bearing directly in paired arrangements without needing shims to set the internal clearance.

In a nutshell

The right choise for

With the Skf 7205 becbp single row angular contact ball bearing, you easily manage simultaneous radial and heavy unidirectional axial loads. The 40° contact angle provides significantly higher thrust capacity than standard deep groove ball bearings. Its lightweight glass-fibre reinforced polyamide cage minimizes friction and operating noise, allowing your equipment to run smoothly and stably at high rotational speeds. Featuring dimensions of 25 x 52 x 15 mm and an open design without seals, this bearing is suited for industrial pump shafts, compressors, and gearboxes with external lubrication. You can also mount it directly in paired arrangements without needing extra shims.

Product information FAQ

€65.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 52 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 10
Lubricant: None
Relubrication feature: Without
Reference speed: 16000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 25
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 17000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 15.6
Coating: Without
Outer diameter: 52
Universal matching bearing: Yes

Brand SKF
01050147
EAN 7316577149718
Supplier number SKF 7205 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has a 25 mm bore diameter, a 52 mm outer diameter, and a 15 mm width.
What loads can the SKF 7205 BECBP accommodate?: This single row angular contact ball bearing accommodates simultaneous radial and axial loads acting in one direction.
What is the advantage of the 40° contact angle?: The 40° contact angle provides higher axial load carrying capacity compared to standard deep groove ball bearings.
What material is used for the cage?: This bearing features a cage made of glass-fibre reinforced polyamide (plastic).
Does this SKF bearing come with seals?: No, this is an open bearing without seals, designed for external grease or oil lubrication.
