SKF

SKF 6330 M single-row groove ball bearing cylindrical 150x320x65 mm

Recommended Retail Price €4,643.97
2,299.20 tax incl.
€1,900.17 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

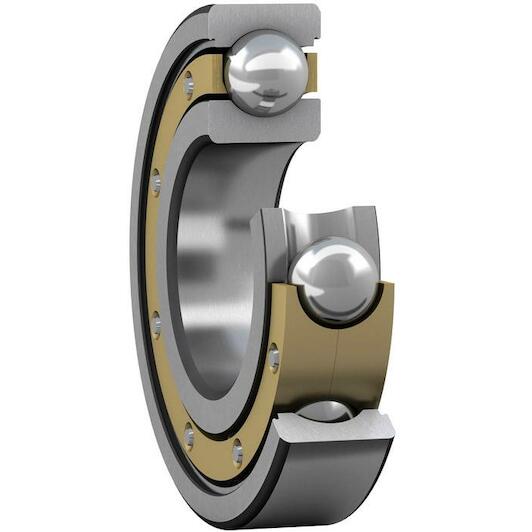

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 150 mm
  • Width: 65 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 320 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577099808
  • Supplier number: SKF 6330 M
Inner diameter
150 mm
Width
65 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
320 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
285
Relubrication feature
Without
Reference speed
4300
Lubricant
None
Cage
Machined metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
4000
Bore diameter
150
Basic dynamic load rating
276
Outside diameter
320
Candidate for remanufacturing
Yes
