skf_6320_2rs1c3
SKF

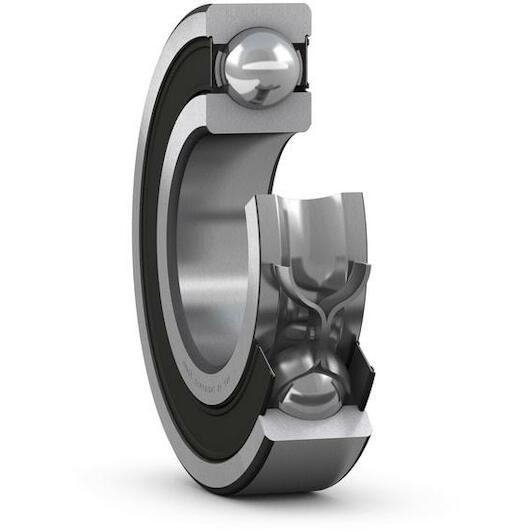

SKF 6320-2RS1/C3 groove ball bearing with seal on both sides 100 mm

Recommended Retail Price €937.86
464.20 tax incl.
€383.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 47 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316575470357
  • Supplier number: SKF 6320-2RS1/C3
Inner diameter
100 mm
Width
47 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
215 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
140
Material, bearing
Bearing steel
Relubrication feature
Without
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Seal on both sides
Limiting speed
2000
Bore diameter
100
Basic dynamic load rating
174
Outside diameter
215
