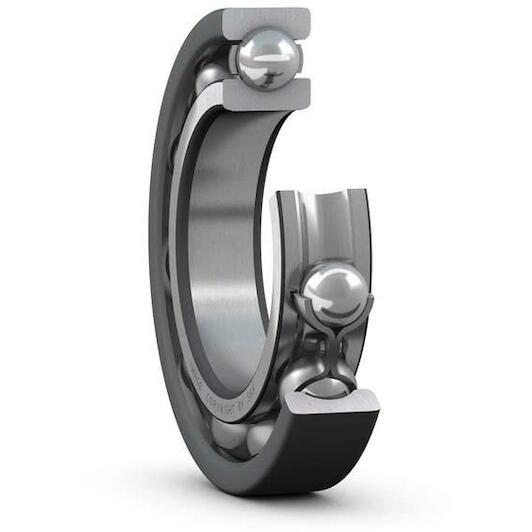

SKF 6313/C3VL0241 INSOCOAT groove ball bearing without seal 65 mm

Recommended Retail Price €2,491.41
1,233.40 tax incl.
€1,019.34 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

INSOCOAT single row deep groove ball bearings feature an electrically insulating coating on the outside surfaces of either the inner or outer bearing ring. This keeps stray electric currents from passing through the bearings, protecting them against electrical erosion damage and helping prevent lubricant degradation resulting from electric current discharge. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Coating protects against electrical erosion damage
  • Reduced lubricant degradation resulting from electric current discharge
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 33 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577227652
  • Supplier number: SKF 6313/C3VL0241
Inner diameter
65 mm
Width
33 mm
Number of rows
1
Seal (bearing)
Without seal
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
140 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
60
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
10000
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Insulation coating on outer ring
Sealing
Without
Limiting speed
6700
Bore diameter
65
Basic dynamic load rating
97.5
Outside diameter
140
