What are the dimensions of this SKF 6310 bearing?

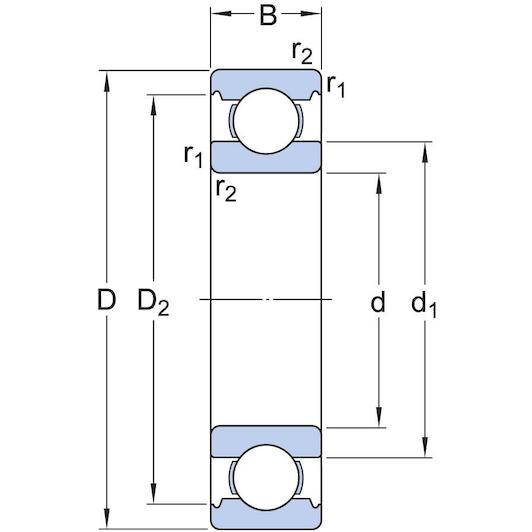

This bearing has an inner diameter of 50 mm, an outer diameter of 110 mm, and a width of 27 mm.

Does this SKF 6310 bearing come with seals?

No, this is an open deep groove ball bearing without seals.

What radial internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (class CN).

What types of loads can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What type of bore does this bearing have?

It features a cylindrical bore designed for standard 50 mm shafts.

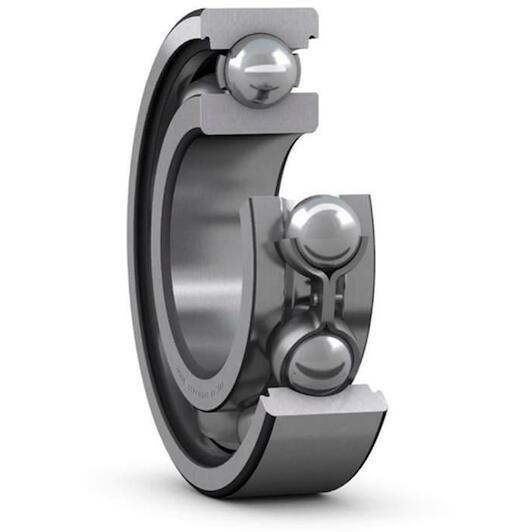

SKF 6310 single-row groove ball bearing cylindrical 50x110x27 mm

Supplier number: SKF 6310 | EAN 7316577067739

Recommended Retail Price €91.79

45.40 tax incl.

€37.52 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6310

Practical benefits

Low friction running performance: The single-row deep groove design reduces rotational resistance, ensuring you achieve smooth operation at high speeds.
Robust load handling capacity: Built from durable bearing steel, you can easily support radial and axial loads across demanding mechanical applications.
Straightforward shaft mounting: The standard 50 mm cylindrical bore allows you to fit the component directly onto compatible shafts with ease.

In a nutshell

The right choise for

With the Skf 6310 deep groove ball bearing, you ensure smooth and reliable rotation across industrial machinery and electric motors. This single-row steel bearing minimizes rotational friction, keeping your equipment running efficiently and stably at high operating speeds. Designed with standard cn radial internal clearance, it easily accommodates combined radial and axial loads in both directions. The 50 mm cylindrical bore, 110 mm outer diameter, and 27 mm width allow for quick, precise mounting on standard shafts in clean, externally lubricated environments.

Product information FAQ

€45.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: CN
Basic static load rating: 38
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 8500
Bore diameter: 50
Basic dynamic load rating: 65
Outer diameter: 110

Brand SKF
01010334
EAN 7316577067739
Supplier number SKF 6310

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 6310 bearing?: This bearing has an inner diameter of 50 mm, an outer diameter of 110 mm, and a width of 27 mm.
Does this SKF 6310 bearing come with seals?: No, this is an open deep groove ball bearing without seals.
What radial internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (class CN).
What types of loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What type of bore does this bearing have?: It features a cylindrical bore designed for standard 50 mm shafts.
