What are the dimensions of this SKF ball bearing?

This deep groove ball bearing has an inside diameter of 17 mm, an outside diameter of 47 mm, and a width of 14 mm.

What does the C3 designation mean?

C3 indicates greater radial internal clearance than normal, suitable for higher operating temperatures or thermal expansion.

Is this bearing sealed or shielded?

No, this is an open design without seals or shields, intended for use in protected housings with lubrication.

What bore type does this bearing have?

It features a standard cylindrical bore for direct fitting onto a 17 mm shaft.

What load types can this bearing accommodate?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

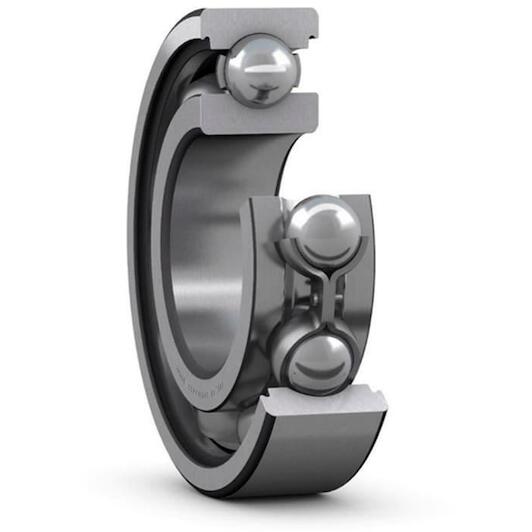

SKF 6303/C3 single-row groove ball bearing cylindrical 17x47x14 mm

Supplier number: SKF 6303/C3 | EAN 7316571370408

14.81 tax incl.

€12.24 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information FAQ

€14.81

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 47 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 14 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 47 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 6.55
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 34000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 22000
Bore diameter: 17
Basic dynamic load rating: 14.3
Outer diameter: 47

Brand SKF
01010689
EAN 7316571370408
Supplier number SKF 6303/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This deep groove ball bearing has an inside diameter of 17 mm, an outside diameter of 47 mm, and a width of 14 mm.
What does the C3 designation mean?: C3 indicates greater radial internal clearance than normal, suitable for higher operating temperatures or thermal expansion.
Is this bearing sealed or shielded?: No, this is an open design without seals or shields, intended for use in protected housings with lubrication.
What bore type does this bearing have?: It features a standard cylindrical bore for direct fitting onto a 17 mm shaft.
What load types can this bearing accommodate?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
