What are the dimensions of this ball bearing?

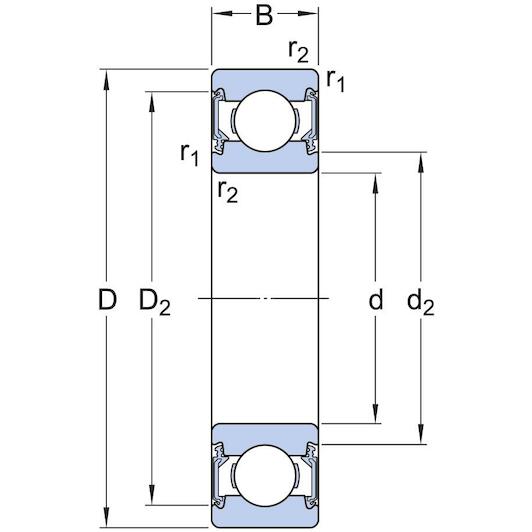

The SKF 6300-2RSH bearing has an inner diameter of 10 mm, an outer diameter of 35 mm, and a width of 11 mm.

What does the 2RSH designation mean for this SKF bearing?

It indicates that the bearing features rubber contact seals on both sides to keep contaminants out.

What internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (designated as CN).

What types of loads can this bearing accommodate?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

Does this bearing require lubrication before installation?

No, the bearing is factory-lubricated with grease and requires no maintenance.

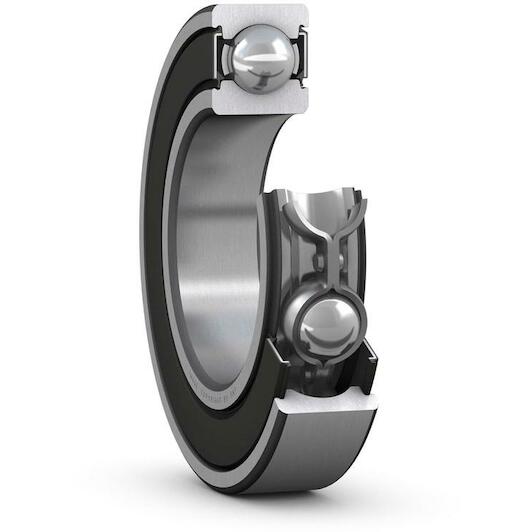

SKF 6300-2RSH single-row groove ball bearing cylindrical 10x35x11 mm

Supplier number: SKF 6300-2RSH | EAN 7316571821122

Recommended Retail Price €15.40

7.60 tax incl.

€6.28 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable rotation with Skf bearing

Practical benefits

Effective double rubber sealing: You keep contaminants out and retain essential lubrication for consistent, trouble-free operation.
Radial and axial support: The single row raceway smoothly accommodates combined loads in both rotational directions.
Low friction smooth running: Engineered for minimal vibration, it reduces mechanical wear and extends your equipment operating life.

In a nutshell

The right choise for

With the Skf 6300-2RSH deep groove ball bearing, you keep your rotating machinery running smoothly and reliably. Engineered for a 10 mm shaft with a 35 mm outer diameter and 11 mm width, this single row ball bearing effortlessly handles combined radial and axial loads in both directions. The dual rubber contact seals keep out dust, dirt, and moisture while retaining factory pre-lubrication grease. This prevents premature mechanical wear and delivers quiet, maintenance-free operation across electric motor maintenance, conveyor rollers, and industrial equipment repair.

Product information FAQ

€7.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 11 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm

Product description

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 11 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 3.4
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 15000
Bore diameter: 10
Basic dynamic load rating: 8.52
Outer diameter: 35

Brand SKF
01010286
EAN 7316571821122
Supplier number SKF 6300-2RSH

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The SKF 6300-2RSH bearing has an inner diameter of 10 mm, an outer diameter of 35 mm, and a width of 11 mm.
What does the 2RSH designation mean for this SKF bearing?: It indicates that the bearing features rubber contact seals on both sides to keep contaminants out.
What internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (designated as CN).
What types of loads can this bearing accommodate?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
Does this bearing require lubrication before installation?: No, the bearing is factory-lubricated with grease and requires no maintenance.
