What are the dimensions of this ball bearing?

The bearing has an inner diameter of 7 mm, an outer diameter of 22 mm, and a width of 7 mm.

What sealing does the SKF 627-2RSH feature?

It features 2RSH contact rubber seals on both sides to keep out dust, moisture, and contaminants.

Does this bearing require lubrication before assembly?

No, it is pre-lubricated with grease at the factory and ready for installation.

What radial internal clearance does this bearing have?

This model has standard radial internal clearance (CN) suitable for normal operating conditions.

Is the bore cylindrical or tapered?

The bore is cylindrical with a 7 mm diameter for mounting on standard straight shafts.

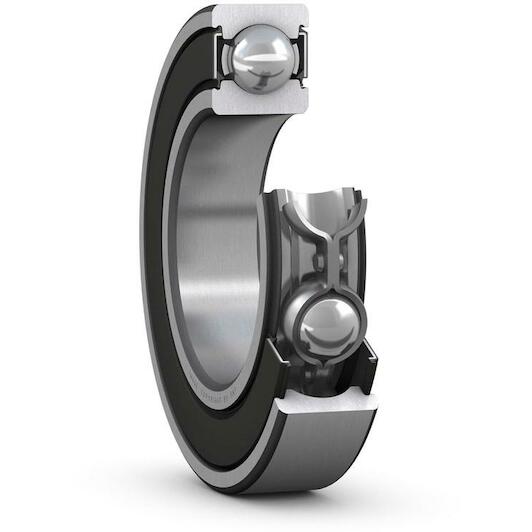

SKF 627-2RSH single-row groove ball bearing cylindrical 7x22x7 mm

Supplier number: SKF 627-2RSH | EAN 7316571844503

10.67 tax incl.

€8.82 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable rotation with Skf 627-2RSH

Practical benefits

Effective seal against contamination: Thanks to the dual rubber contact seals, you keep dust and moisture out while retaining grease for extended component life.
Smooth performance at speed: You benefit from low friction and reduced vibration, enabling smooth operation under combined radial and axial loads.
Minimal maintenance during operation: The pre-lubricated steel design ensures you eliminate regular regreasing and enjoy dependable, trouble-free running.

In a nutshell

The right choise for

With the Skf 627-2RSH single row deep groove ball bearing, you ensure smooth rotation and dependable performance on rotating shafts with a 7 mm inner diameter. Dual 2RSH rubber contact seals protect internal components by keeping out dust, dirt, and moisture while retaining the factory lubricant. This pre-lubricated design delivers maintenance-free operation with low friction and minimal vibration under both radial and axial loads. Featuring dimensions of 7X22X7 mm and a cylindrical bore, this steel bearing installs directly into power tools, small electric motors, or precision equipment for reliable, long-lasting operation.

Product information FAQ

€10.67

In stock - tax incl.

Key features according to our expert

Inner diameter: 7 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 22 mm

Product description

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 7 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 22 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 1.37
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 22000
Bore diameter: 7
Basic dynamic load rating: 3.45
Outer diameter: 22

Brand SKF
01010032
EAN 7316571844503
Supplier number SKF 627-2RSH

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has an inner diameter of 7 mm, an outer diameter of 22 mm, and a width of 7 mm.
What sealing does the SKF 627-2RSH feature?: It features 2RSH contact rubber seals on both sides to keep out dust, moisture, and contaminants.
Does this bearing require lubrication before assembly?: No, it is pre-lubricated with grease at the factory and ready for installation.
What radial internal clearance does this bearing have?: This model has standard radial internal clearance (CN) suitable for normal operating conditions.
Is the bore cylindrical or tapered?: The bore is cylindrical with a 7 mm diameter for mounting on standard straight shafts.
