SKF

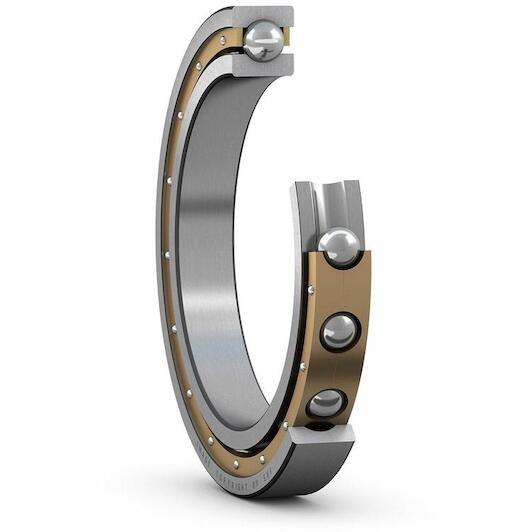

SKF 6234 M/C3 single-row groove ball bearing cylindrical 170x310x52 mm

Recommended Retail Price €4,095.09
2,027.40 tax incl.
€1,675.54 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 170 mm
  • Width: 52 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 310 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576618871
  • Supplier number: SKF 6234 M/C3
Inner diameter
170 mm
Width
52 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
310 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
224
Relubrication feature
Without
Reference speed
4300
Lubricant
None
Cage
Machined metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
3800
Bore diameter
170
Basic dynamic load rating
212
Outside diameter
310
Candidate for remanufacturing
Yes
