What are the dimensions of this ball bearing?

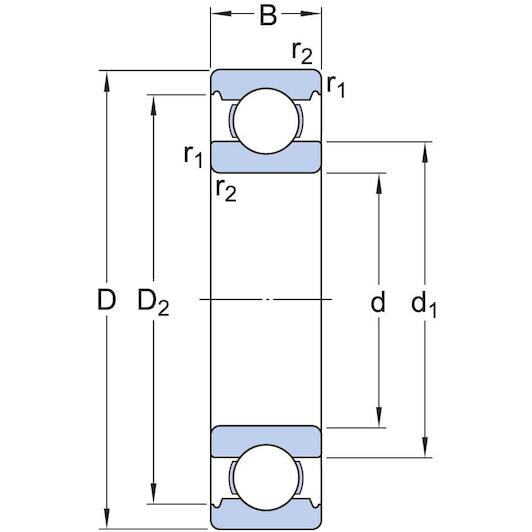

This bearing has a 120 mm bore diameter, a 215 mm outside diameter, and a 40 mm width.

What internal radial clearance does the SKF 6224 have?

This model features standard normal radial internal clearance (designated as CN).

Is this bearing sealed?

No, this is an open bearing without built-in seals or shields.

What loads can this bearing accommodate?

It accommodates both radial loads and axial loads in both directions.

What type of bore does this bearing have?

It features a cylindrical bore for direct mounting onto a straight shaft.

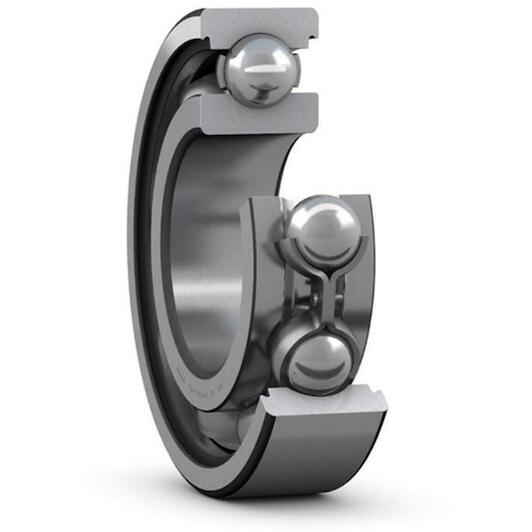

SKF 6224 single-row groove ball bearing cylindrical 120x215x40 mm

Supplier number: SKF 6224 | EAN 7316576621727

Recommended Retail Price €937.05

463.80 tax incl.

€383.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation under heavy loads

Practical benefits

High combined load capacity: You reliably accommodate heavy radial and axial forces simultaneously thanks to the deep raceway geometry.
Optimized for high speeds: The open design minimizes internal friction so you achieve smooth and vibration-free rotation at high rotational speeds.
Genuine Skf reliability: Engineered from premium bearing steel, it delivers long service life and reduced maintenance requirements across demanding machinery.

In a nutshell

The right choise for

With the Skf 6224 single row deep groove ball bearing, you ensure reliable, low-friction operation across demanding industrial machinery. Featuring a 120 mm cylindrical bore, this open steel ball bearing effortlessly accommodates combined radial loads and axial forces in both directions. Thanks to its robust construction and normal radial internal clearance (CN), you achieve smooth, vibration-free rotation at high speeds in electric motors, gearboxes, pumps, and industrial fans. By minimizing internal friction and energy loss, you prevent unexpected downtime and extend the service life of your mechanical drive systems.

Product information FAQ

€463.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 120 mm
Width: 40 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 215 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 120 mm
Width: 40 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 215 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 118
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 6300
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 4000
Bore diameter: 120
Basic dynamic load rating: 146
Outer diameter: 215

Brand SKF
01010276
EAN 7316576621727
Supplier number SKF 6224

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: This bearing has a 120 mm bore diameter, a 215 mm outside diameter, and a 40 mm width.
What internal radial clearance does the SKF 6224 have?: This model features standard normal radial internal clearance (designated as CN).
Is this bearing sealed?: No, this is an open bearing without built-in seals or shields.
What loads can this bearing accommodate?: It accommodates both radial loads and axial loads in both directions.
What type of bore does this bearing have?: It features a cylindrical bore for direct mounting onto a straight shaft.
