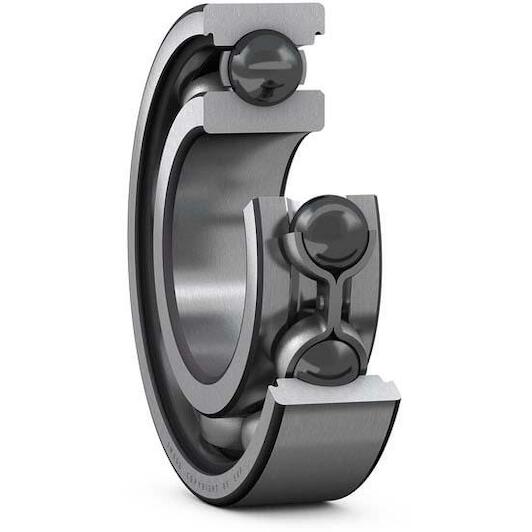

SKF 6214/HC5C3 Hybrid ceramic groove ball bearing without seal 70 mm

Recommended Retail Price €1,372.93
679.60 tax incl.
€561.65 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Hybrid ceramic single row deep groove ball bearings have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. Deep groove ball bearings are the most widely used bearing type, especially in electric motors. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling, and less sensitivity to temperature gradients. These characteristics make them suitable for use in difficult conditions and contaminated environments.

  • Protected against electric current damage
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 70
  • Outer diameter: 125
  • Width: 24
Specifications / All features
  • Brand: SKF
  • EAN: 07316572070963
  • Supplier number: SKF 6214/HC5C3
Inner diameter
70
Outer diameter
125
Width
24
Material, bearing
Hybrid (ceramic balls)
Cage
Sheet metal
Lubricant
None
Reference speed
13000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
45
Radial internal clearance
C3
Tolerance class
Normal
Filling slots
Without
Locating feature, bearing outer ring
None
Limiting speed
8500
Sealing
Without
Bore diameter
70
Number of rows
1
Basic dynamic load rating
60.5
Coating
Without
Outside diameter
125
Bore type
Cylindrical
