What are the dimensions of this SKF 6212 deep groove ball bearing?

The bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 22 mm.

Does this bearing have seals?

No, this is an open bearing without seals. You must apply the appropriate lubrication during installation.

What internal radial clearance does this bearing have?

This ball bearing features standard CN (normal) internal radial clearance.

What loads can the SKF 6212 accommodate?

This single row deep groove ball bearing accommodates radial and axial loads in both directions.

What type of bore does this bearing have?

This bearing has a cylindrical bore for direct mounting on a cylindrical shaft.

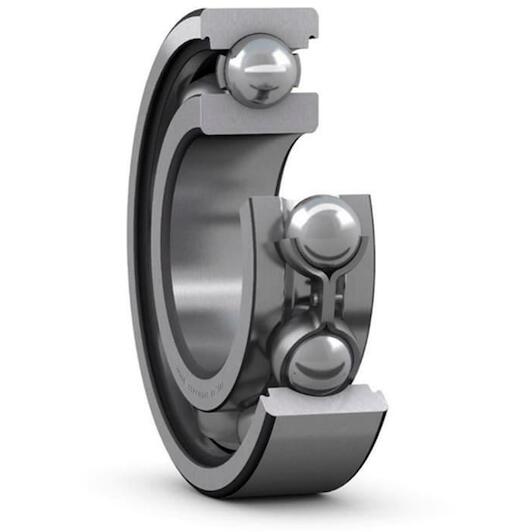

SKF 6212 single-row groove ball bearing cylindrical 60x110x22 mm

Supplier number: SKF 6212 | EAN 7316577085481

Recommended Retail Price €75.82

37.40 tax incl.

€30.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6212

Practical benefits

Balanced two-way load support: You effortlessly handle radial and axial forces in both directions of rotation.
Low friction high speed: The open design minimizes friction, allowing you to achieve high rotational speeds reliably.
Robust all-steel construction: Built from durable steel, it ensures minimal maintenance and dependable continuous operation.

In a nutshell

The right choise for

With the Skf 6212 single row deep groove ball bearing, you ensure smooth and dependable rotation across your industrial machinery. The open, unsealed design minimizes frictional drag, allowing you to run smoothly at high rotational speeds. Built from durable steel, it reliably handles combined radial and axial loads in both directions of rotation. Featuring a 60 mm inner diameter, 110 mm outer diameter, and 22 mm width, its cylindrical bore allows for straightforward mounting directly onto straight shafts in electric motors, gearboxes, and pumps.

Product information FAQ

€37.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

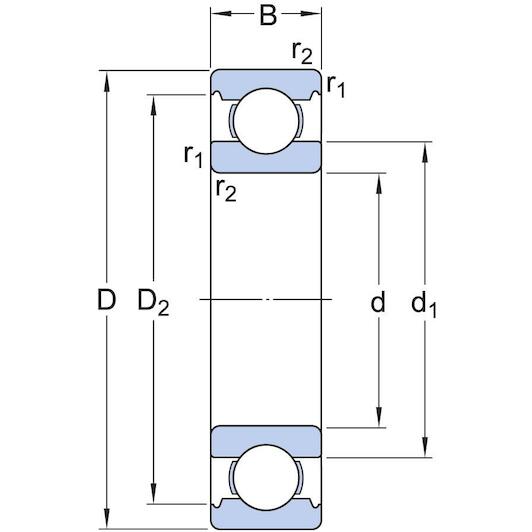

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: CN
Basic static load rating: 36
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 8000
Bore diameter: 60
Basic dynamic load rating: 55.3
Outer diameter: 110

Brand SKF
01010240
EAN 7316577085481
Supplier number SKF 6212

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 6212 deep groove ball bearing?: The bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 22 mm.
Does this bearing have seals?: No, this is an open bearing without seals. You must apply the appropriate lubrication during installation.
What internal radial clearance does this bearing have?: This ball bearing features standard CN (normal) internal radial clearance.
What loads can the SKF 6212 accommodate?: This single row deep groove ball bearing accommodates radial and axial loads in both directions.
What type of bore does this bearing have?: This bearing has a cylindrical bore for direct mounting on a cylindrical shaft.
