What are the exact dimensions of this SKF bearing?

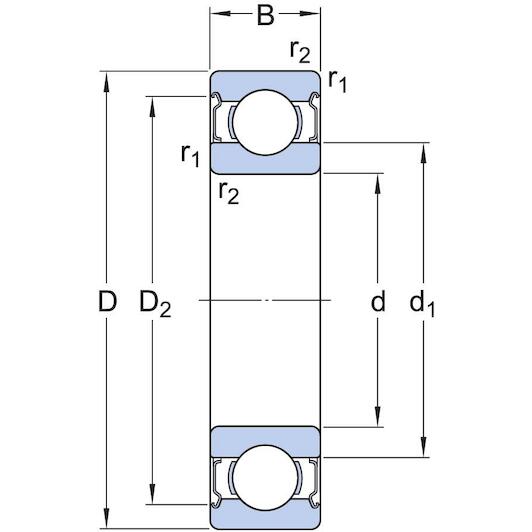

This deep groove ball bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 22 mm.

What does the 2Z suffix designate on this bearing?

The 2Z designation indicates that the bearing is fitted with metal shields on both sides to protect against dust and debris.

What types of loads can this deep groove ball bearing support?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What internal clearance does this ball bearing have?

This bearing has standard normal radial internal clearance (designated as CN).

Is this SKF bearing suitable for high-temperature applications?

No, this standard steel bearing is not designed for use in high-temperature environments.

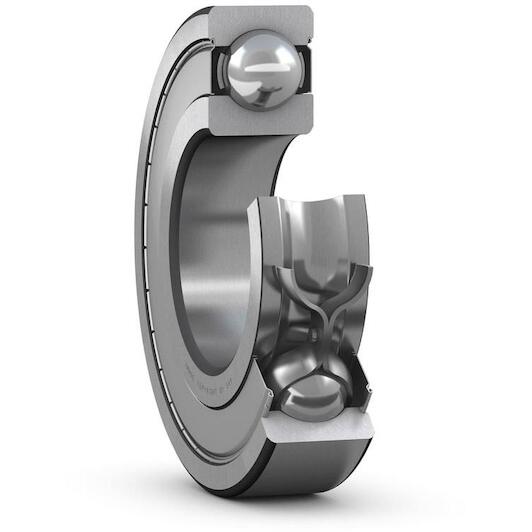

SKF 6212-2Z single-row groove ball bearing cylindrical 60x110x22 mm

Supplier number: SKF 6212-2Z | EAN 7316577302762

Recommended Retail Price €87.13

42.95 tax incl.

€35.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with 6212-2Z bearing

Practical benefits

Effective protection against debris: The dual metal shields keep contaminants out while retaining lubricant inside for long-lasting, trouble-free operation.
Handles versatile load combinations: You can reliably support both radial and axial forces in both directions thanks to the deep groove geometry.
Reduced friction at speed: Precision steel components help you maintain low running temperatures and smooth motion during high-speed applications.

In a nutshell

The right choise for

With the Skf 6212-2Z single row deep groove ball bearing, you ensure smooth and dependable rotation across your industrial machinery, gearboxes, and electric motors. Measuring 60X110X22 mm with a cylindrical bore, this steel bearing readily supports both radial and axial loads in either direction. The dual metal shields keep contaminants out while retaining factory lubrication inside, significantly reducing friction, heat build-up, and relubrication requirements at high speeds. Featuring standard normal radial internal clearance CN, it delivers the stability and running accuracy needed for everyday maintenance and equipment overhauls.

Product information FAQ

€42.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 110 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 36
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 55.3
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 6300
Bore diameter: 60
Coating: Without
Outer diameter: 110

Brand SKF
01010244
EAN 7316577302762
Supplier number SKF 6212-2Z

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF bearing?: This deep groove ball bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 22 mm.
What does the 2Z suffix designate on this bearing?: The 2Z designation indicates that the bearing is fitted with metal shields on both sides to protect against dust and debris.
What types of loads can this deep groove ball bearing support?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What internal clearance does this ball bearing have?: This bearing has standard normal radial internal clearance (designated as CN).
Is this SKF bearing suitable for high-temperature applications?: No, this standard steel bearing is not designed for use in high-temperature environments.
