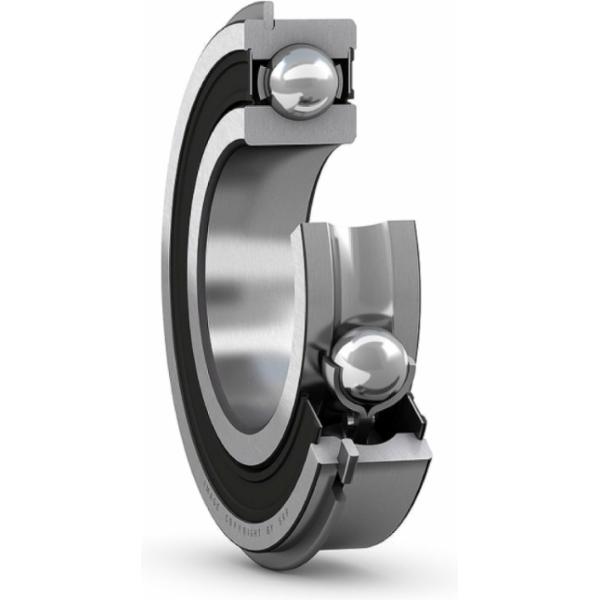

SKF 6211-2RS1NR single-row groove ball bearing cylindrical 55x100x21 mm

Supplier number: SKF 6211-2RS1NR | EAN 7316570548013
This product has been discontinued.



Product information

Key features according to our expert

  • Inner diameter: 55 mm
  • Width: 21 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Rubber
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 100 mm

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds

All Features

Inner diameter
55 mm
Width
21 mm
Number of rows
1
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Rubber
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
100 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
29 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
14,000 r/min
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Class P6 (P6)
Basic dynamic load rating
46.2 kN
Locating feature, bearing outer ring
Snap ring (fitted)
Sealing
Seal on both sides
Limiting speed
4,300 r/min
Bore diameter
55 mm
Coating
Without
Outer diameter
100 mm
  • Brand SKF
  • EAN 7316570548013
  • Supplier number SKF 6211-2RS1NR
