What are the dimensions of this ball bearing?

The bearing has an inside diameter of 45 mm, an outside diameter of 85 mm, and a width of 19 mm.

What does the C3 designation mean for this bearing?

C3 indicates greater radial internal clearance than standard, accommodating thermal expansion and high speeds.

Does this SKF bearing have seals or shields?

No, this is an open bearing without seals, designed for lubricated housings or oil bath environments.

What type of bore does this deep groove ball bearing have?

It features a cylindrical bore for direct mounting onto a standard 45 mm shaft.

What types of loads can this bearing accommodate?

As a single-row deep groove ball bearing, it accommodates both radial and axial loads in both directions.

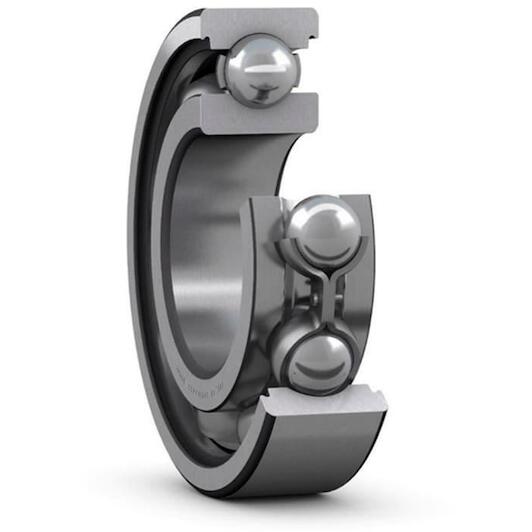

SKF 6209/C3 single-row groove ball bearing cylindrical 45x85x19 mm

Supplier number: SKF 6209/C3 | EAN 7316571369242

Recommended Retail Price €43.66

21.60 tax incl.

€17.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6209/C3

Practical benefits

Low friction at high speeds: The optimized raceway geometry minimizes vibration, allowing you to run continuous operations at high rotational speeds without excess heat.
Increased C3 radial clearance: The internal C3 clearance compensates for thermal expansion between shaft and housing, preventing premature binding during heavy workloads.
Bidirectional combined load support: This single row deep groove ball bearing reliably accommodates both radial and axial forces across diverse rotating machinery applications.

In a nutshell

The right choise for

Keep your rotating machinery operating smoothly with the Skf 6209/C3 single row deep groove ball bearing. Engineered with increased C3 radial internal clearance, it accommodates thermal expansion during high-speed and demanding continuous cycles without binding. The optimized raceway geometry reduces friction and vibration, delivering dependable operation under heavy workloads. This open steel bearing features a 45 mm cylindrical bore, an 85 mm outer diameter, and a 19 mm width. Designed to support both radial and axial loads in both directions, it is ideal for closed oil- or grease-lubricated housings.

Product information FAQ

€21.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 85 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 85 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 21.6
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 17000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 11000
Bore diameter: 45
Basic dynamic load rating: 33.2
Outer diameter: 85

Brand SKF
01011059
EAN 7316571369242
Supplier number SKF 6209/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has an inside diameter of 45 mm, an outside diameter of 85 mm, and a width of 19 mm.
What does the C3 designation mean for this bearing?: C3 indicates greater radial internal clearance than standard, accommodating thermal expansion and high speeds.
Does this SKF bearing have seals or shields?: No, this is an open bearing without seals, designed for lubricated housings or oil bath environments.
What type of bore does this deep groove ball bearing have?: It features a cylindrical bore for direct mounting onto a standard 45 mm shaft.
What types of loads can this bearing accommodate?: As a single-row deep groove ball bearing, it accommodates both radial and axial loads in both directions.
