What are the dimensions of this ball bearing?

This bearing has an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.

What does the 2RS1 designation mean?

It indicates contact rubber seals on both sides to keep contaminants out and lubricant inside.

What is the purpose of the C3 clearance class?

C3 clearance provides greater internal radial play than standard, ideal for thermal expansion or high speeds.

What types of loads can this deep groove ball bearing handle?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

Does this bearing require lubrication before installation?

No, it is pre-lubricated with grease at the factory and sealed for life for maintenance-free use.

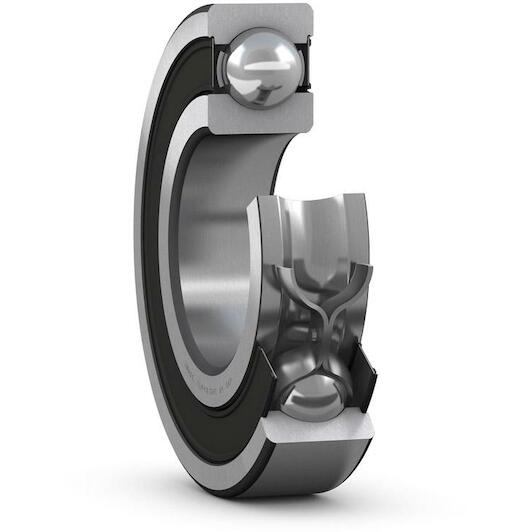

SKF 6207-2RS1/C3 single-row groove ball bearing cylindrical 35x72x17 mm

Supplier number: SKF 6207-2RS1/C3 | EAN 7316575801984

Recommended Retail Price €36.01

17.80 tax incl.

€14.71 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation with Skf 6207-2RS1/C3

Practical benefits

Effective double rubber sealing: You prevent dirt and moisture from entering while keeping the internal lubricant securely inside.
Ready for high speeds: The increased C3 internal clearance accommodates thermal expansion during high-speed and demanding operations.
Low friction load support: You handle combined radial and axial loads efficiently with smooth rotation and minimal maintenance requirements.

In a nutshell

The right choise for

Keep your rotating equipment running smoothly and reliably with the Skf 6207-2RS1/C3 single row deep groove ball bearing. Designed with a 35 mm bore, 72 mm outside diameter, and 17 mm width, this steel bearing effectively supports both radial and axial loads. The dual contact rubber seals keep dirt and moisture out while retaining the factory lubricant for maintenance-free operation. Thanks to the increased C3 radial internal clearance, it accommodates thermal expansion during high-speed applications in electric motors, pumps, and gearboxes without seizing, ensuring continuous operation and reduced rotational friction.

Product information FAQ

€17.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 15.3
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 6300
Bore diameter: 35
Basic dynamic load rating: 27
Outer diameter: 72

Brand SKF
01010842
EAN 7316575801984
Supplier number SKF 6207-2RS1/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: This bearing has an inside diameter of 35 mm, an outside diameter of 72 mm, and a width of 17 mm.
What does the 2RS1 designation mean?: It indicates contact rubber seals on both sides to keep contaminants out and lubricant inside.
What is the purpose of the C3 clearance class?: C3 clearance provides greater internal radial play than standard, ideal for thermal expansion or high speeds.
What types of loads can this deep groove ball bearing handle?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
Does this bearing require lubrication before installation?: No, it is pre-lubricated with grease at the factory and sealed for life for maintenance-free use.
