SKF

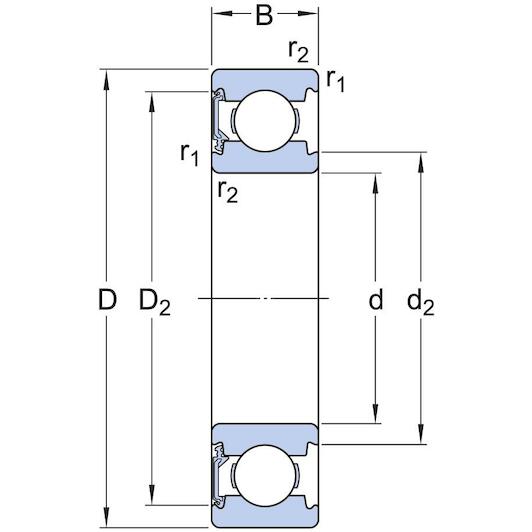

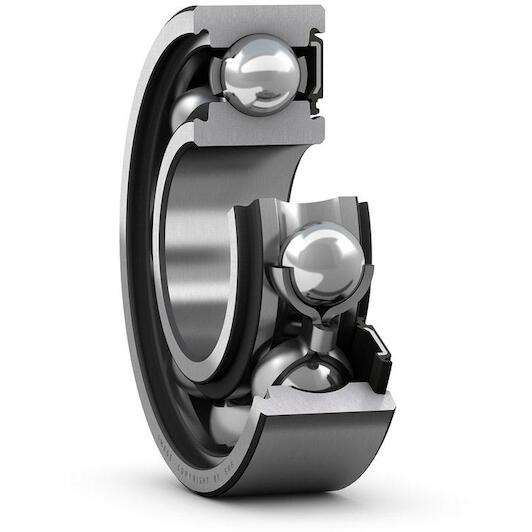

SKF 6203-RSH single-row groove ball bearing cylindrical 17x40x12 mm

Recommended Retail Price €15.14
7.40 tax incl.
€6.12 excl. VAT (incl. all environmental contributions)
On order: delivered from 18/05/2026
each

  • Delivery by DHL

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 12 mm
  • Number of rows: 1
  • Seal (bearing): Single-sided sealed
  • Material (bearing seal): Rubber
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316571856353
  • Supplier number: SKF 6203-RSH
Inner diameter
17 mm
Width
12 mm
Number of rows
1
Seal (bearing)
Single-sided sealed
Material (bearing seal)
Rubber
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
40 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
4.75
Material, bearing
Bearing steel
Relubrication feature
Without
Skf performance class
SKF Explorer
Lubricant
None
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Seal on one side
Limiting speed
12000
Bore diameter
17
Basic dynamic load rating
9.95
Outside diameter
40
