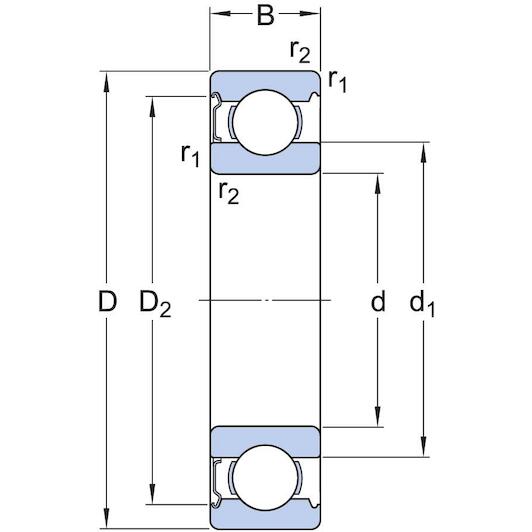

What are the dimensions of this ball bearing?

The bearing has an inside diameter of 12 mm, an outside diameter of 32 mm, and a width of 10 mm.

What does the Z designation mean for this SKF bearing?

The letter Z indicates that the bearing has a metal shield on one side. The other side is open.

What radial internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (designated as CN).

What type of bore does this deep groove ball bearing have?

This bearing features a standard cylindrical bore for mounting on a 12 mm shaft.

What loads can this bearing accommodate?

This single-row deep groove ball bearing accommodates radial loads as well as light axial loads in both directions.

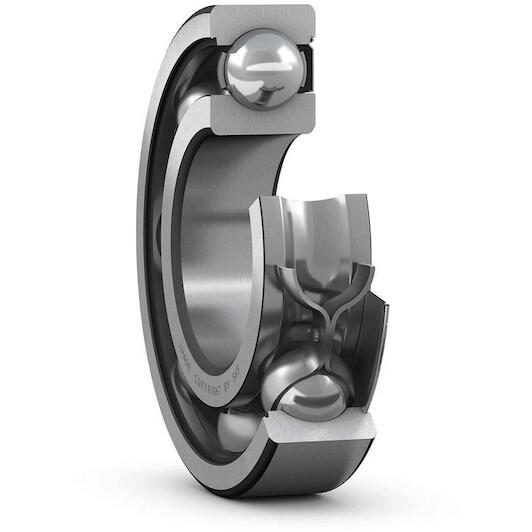

SKF 6201-Z single-row groove ball bearing cylindrical 12x32x10 mm

Supplier number: SKF 6201-Z | EAN 7316571154091

11.13 tax incl.

€9.20 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6201-Z

Practical benefits

Single metal shield protection: The built-in metal shield keeps contaminants out while allowing you to maintain high rotational speeds with low friction.
High radial load capacity: Thanks to the durable steel build, you reliably handle radial and moderate axial loads in compact machine assemblies.
Quiet and consistent operation: Precision-engineered deep raceways ensure you experience low vibration and minimized wear during demanding continuous operation.

In a nutshell

The right choise for

With the Skf 6201-Z deep groove ball bearing, you ensure reliable and smooth rotation in your machinery. Measuring 12X32X10 mm with a cylindrical bore, this single-row bearing accommodates radial loads and light axial forces in both directions. The single metal shield keeps dirt and contaminants out while minimizing friction at high rotational speeds. Whether you are rebuilding an electric motor, servicing power tool gearboxes, or maintaining conveyor rollers, this durable steel bearing with normal radial clearance keeps your mechanical drives running quietly, smoothly, and consistently.

Product information FAQ

€11.13

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 32 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on one side
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 32 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 3.1
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 50000
Skf performance class: SKF Explorer
Lubricant: None
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 7.28
Locating feature, bearing outer ring: None
Sealing: Shield on one side
Limiting speed: 32000
Bore diameter: 12
Coating: Without
Outer diameter: 32

Brand SKF
01010188
EAN 7316571154091
Supplier number SKF 6201-Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this ball bearing?: The bearing has an inside diameter of 12 mm, an outside diameter of 32 mm, and a width of 10 mm.
What does the Z designation mean for this SKF bearing?: The letter Z indicates that the bearing has a metal shield on one side. The other side is open.
What radial internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (designated as CN).
What type of bore does this deep groove ball bearing have?: This bearing features a standard cylindrical bore for mounting on a 12 mm shaft.
What loads can this bearing accommodate?: This single-row deep groove ball bearing accommodates radial loads as well as light axial loads in both directions.
