SKF

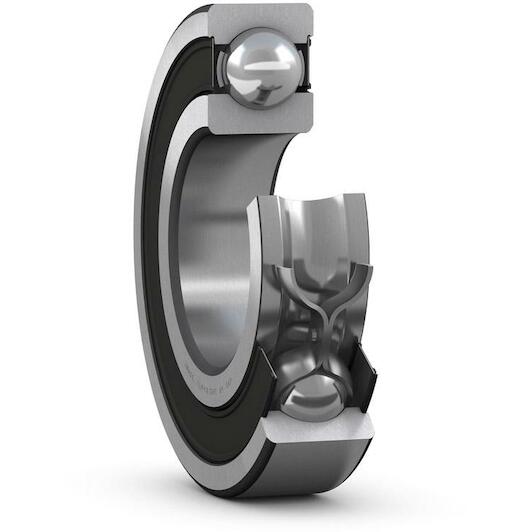

SKF 61909-2RS1 single-row groove ball bearing cylindrical 45x68x12 mm

Recommended Retail Price €173.30
85.80 tax incl.
€70.91 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 12 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Rubber
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 68 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577611642
  • Supplier number: SKF 61909-2RS1
Inner diameter
45 mm
Width
12 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
68 mm
Basic static load rating
9.8
Filling slots
Without
Tolerance class
Normal
Radial internal clearance
CN
Material, bearing
Bearing steel
Matched arrangement
No
Relubrication feature
Without
Lubricant
Grease
Sealing type
Contact
Sealing
Seal on both sides
Locating feature, bearing outer ring
None
Limiting speed
6000
Bore diameter
45
Basic dynamic load rating
14
Coating
Without
Outside diameter
68
