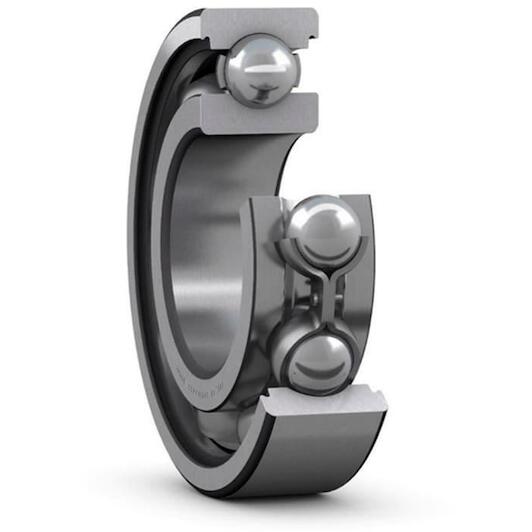

SKF 61838 single-row groove ball bearing cylindrical 190x240x24 mm

Recommended Retail Price €1,620.29
802.20 tax incl.
€662.98 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Delivery by DHL

Product description

  • Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 190 mm
  • Width: 24 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571434216
  • Supplier number: SKF 61838
Inner diameter
190 mm
Width
24 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
240 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
98
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
5300
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
3200
Bore diameter
190
Basic dynamic load rating
76.1
Outside diameter
240
