What are the dimensions of this SKF bearing?

This bearing has a 15 mm bore diameter, a 24 mm outside diameter, and a width of 5 mm.

What does the 2Z designation mean on this bearing?

The 2Z suffix indicates non-contact metal shields on both sides to keep contaminants out.

What internal radial clearance does this bearing have?

It features standard radial internal clearance (CN), ideal for common operating conditions.

What bore type is used on the SKF 61802-2Z?

It has a standard cylindrical bore designed to fit directly onto a 15 mm shaft.

Is this bearing rated for high-temperature use?

No, this standard steel ball bearing is not designed for high-temperature applications.

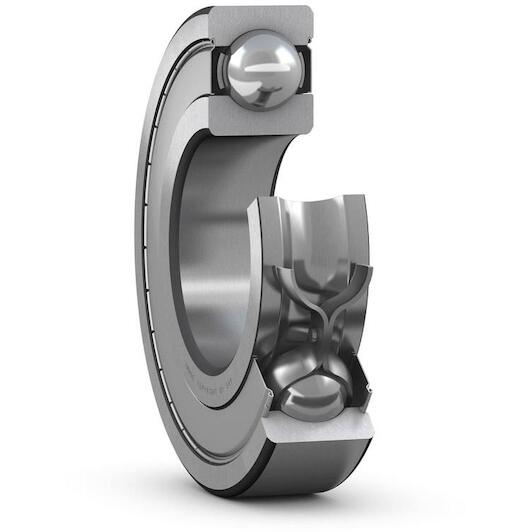

SKF 61802-2Z single-row groove ball bearing cylindrical 15x24x5 mm

Supplier number: SKF 61802-2Z | EAN 7316577121639

Recommended Retail Price €38.82

19.20 tax incl.

€15.87 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with 61802-2Z deep groove ball bearing

Practical benefits

Effective protection against contaminants: The metal shields on both sides keep lubricant inside and block debris, ensuring you achieve a longer operating life.
Built for high speeds: Low internal friction allows you to run machinery smoothly and quietly even at high rotational speeds.
Supports radial and axial loads: You can reliably handle forces in both radial and axial directions thanks to the precise steel construction.

In a nutshell

The right choise for

With the Skf 61802-2Z single row deep groove ball bearing, you ensure smooth and dependable shaft rotation in confined spaces. Thanks to the metal shields on both sides, lubricant stays inside while dust and contaminants are blocked, resulting in a longer service life. The steel construction with a 15 mm cylindrical bore reliably handles both radial and axial loads. Low internal friction enables compact machinery, power tools, and bicycle components to run quietly and efficiently even at high rotational speeds.

Product information FAQ

€19.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 5 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 5 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 1.1
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 60000
Lubricant: Grease
Sealing type: Non-contact
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Shield on both sides
Limiting speed: 30000
Bore diameter: 15
Basic dynamic load rating: 1.9
Outer diameter: 24

Brand SKF
01011268
EAN 7316577121639
Supplier number SKF 61802-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: This bearing has a 15 mm bore diameter, a 24 mm outside diameter, and a width of 5 mm.
What does the 2Z designation mean on this bearing?: The 2Z suffix indicates non-contact metal shields on both sides to keep contaminants out.
What internal radial clearance does this bearing have?: It features standard radial internal clearance (CN), ideal for common operating conditions.
What bore type is used on the SKF 61802-2Z?: It has a standard cylindrical bore designed to fit directly onto a 15 mm shaft.
Is this bearing rated for high-temperature use?: No, this standard steel ball bearing is not designed for high-temperature applications.
