What are the dimensions of this SKF ball bearing?

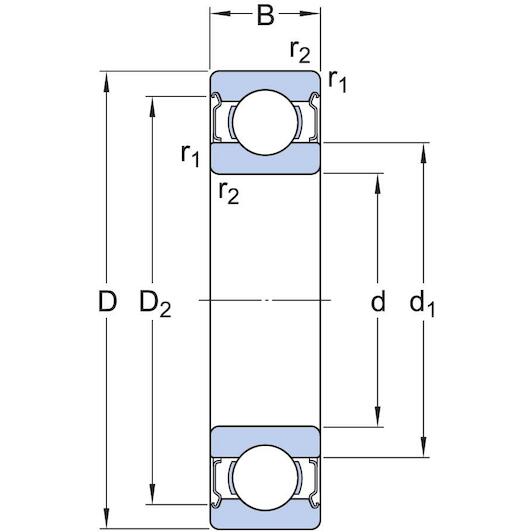

This ball bearing has an inside diameter of 9 mm, an outside diameter of 24 mm, and a width of 7 mm.

What does the C3 designation mean for this bearing?

C3 indicates an internal radial clearance greater than normal, ideal for high speeds or thermal expansion.

What protection does the 2Z seal provide?

The 2Z designation means the bearing is fitted with metal shields on both sides to keep out dirt and debris.

What loads can this deep groove ball bearing accommodate?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What type of bore does the SKF 609-2Z/C3 bearing have?

It features a standard cylindrical bore for straightforward shaft mounting.

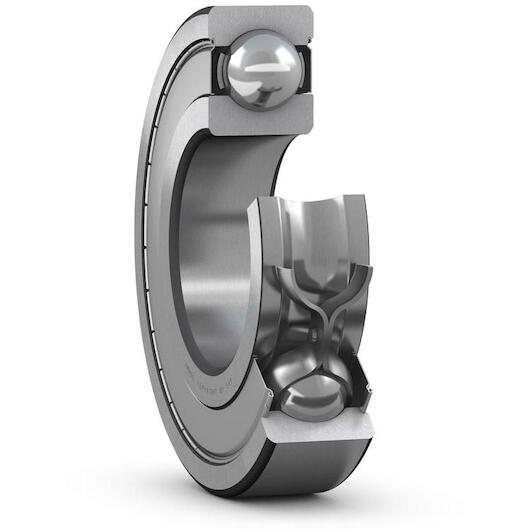

SKF 609-2Z/C3 single-row groove ball bearing cylindrical 9x24x7 mm

Supplier number: SKF 609-2Z/C3 | EAN 7316571164588

9.80 tax incl.

€8.10 excl. VAT (incl. all environmental contributions)

On order: delivered from 29/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable rotation with Skf

Practical benefits

Effective protection against debris: Shielding on both sides keeps grease inside while protecting your bearing from external contaminants.
Optimized for higher speeds: The C3 internal clearance reduces friction so you achieve smooth operation at high rotational speeds.
Versatile bidirectional load capacity: You easily handle combined radial and axial loads across compact mechanical setups.

In a nutshell

The right choise for

With the Skf 609-2Z/C3 single row deep groove ball bearing, you ensure smooth and reliable rotation for your electric motors and compact machinery. Featuring dimensions of 9X24X7 mm and a cylindrical bore, it mounts easily and securely onto standard shafts. Dual metal shields keep lubricant sealed inside while shielding internal components against dust and particulate contamination, minimizing maintenance requirements. The C3 radial internal clearance accommodates thermal expansion at high rotational speeds. This gives you low-friction performance while reliably handling combined radial and axial loads in both directions.

Product information FAQ

€9.80

tax incl.

Key features according to our expert

Inner diameter: 9 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 9 mm
Width: 7 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 24 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 1.66
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 70000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 3.9
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 34000
Bore diameter: 9
Coating: Without
Outer diameter: 24

Brand SKF
01011256
EAN 7316571164588
Supplier number SKF 609-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: This ball bearing has an inside diameter of 9 mm, an outside diameter of 24 mm, and a width of 7 mm.
What does the C3 designation mean for this bearing?: C3 indicates an internal radial clearance greater than normal, ideal for high speeds or thermal expansion.
What protection does the 2Z seal provide?: The 2Z designation means the bearing is fitted with metal shields on both sides to keep out dirt and debris.
What loads can this deep groove ball bearing accommodate?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What type of bore does the SKF 609-2Z/C3 bearing have?: It features a standard cylindrical bore for straightforward shaft mounting.
