SKF

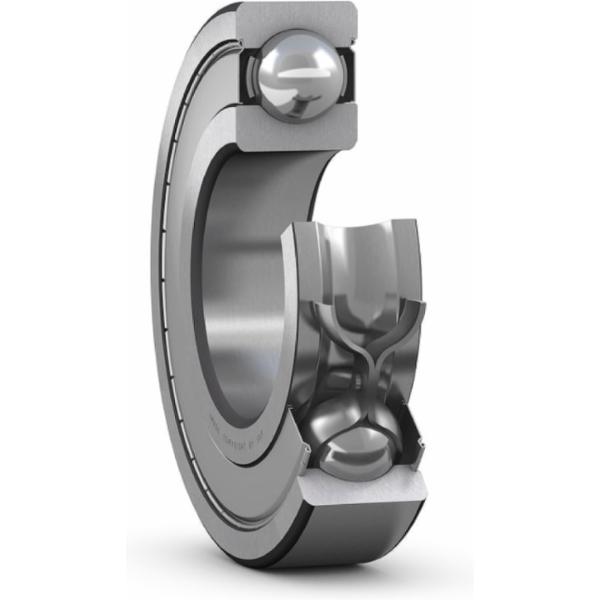

SKF 6032-2Z single-row groove ball bearing cylindrical 160x240x38 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 38 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 240 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570426335
  • Supplier number: SKF 6032-2Z
Inner diameter
160 mm
Width
38 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
240 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
143 kN
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
5,600 r/min
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
143 kN
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
2,800 r/min
Bore diameter
160 mm
Coating
Without
Outside diameter
240 mm
