SKF 6003-2RSH single-row groove ball bearing cylindrical 17x35x10 mm

Supplier number: SKF 6003-2RSH | EAN 7316571815268

14.27 tax incl.

€11.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

Effective dual rubber sealing: Seals on both sides keep dust and moisture out while retaining lubricant inside.
Handles combined operational loads: The single row deep groove design accommodates both radial and axial forces in either direction.
Robust and quiet operation: Strong steel construction ensures low friction and dependable performance across demanding mechanical assemblies.

In a nutshell

The right choise for

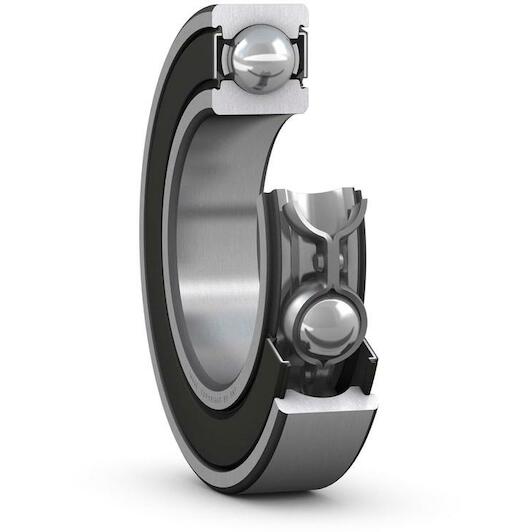

With the Skf 6003-2RSH single row deep groove ball bearing, you ensure smooth, low-friction rotation across your rotating machinery. Fitted with contact rubber seals on both sides (2RSH), it keeps dust, dirt, and moisture out while locking grease inside for dependable, maintenance-free operation. Its durable steel construction accommodates combined radial and axial loads in both directions, making it ideal for electric motors, pumps, and gearboxes. Featuring dimensions of 17X35X10 mm, a standard cylindrical bore, and normal radial clearance (CN), you can fit it directly onto a 17 mm shaft to quickly replace worn or noisy bearings.

Product information FAQ

€14.27

In stock - tax incl.

Key features according to our expert

Inner diameter: 17 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm

Product description

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 17 mm
Width: 10 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 35 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 3.25
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 13000
Bore diameter: 17
Basic dynamic load rating: 6.37
Outside diameter: 35

Brand SKF
01010091
EAN 7316571815268
Supplier number SKF 6003-2RSH

Frequently asked questions about this product

Answered by specialists

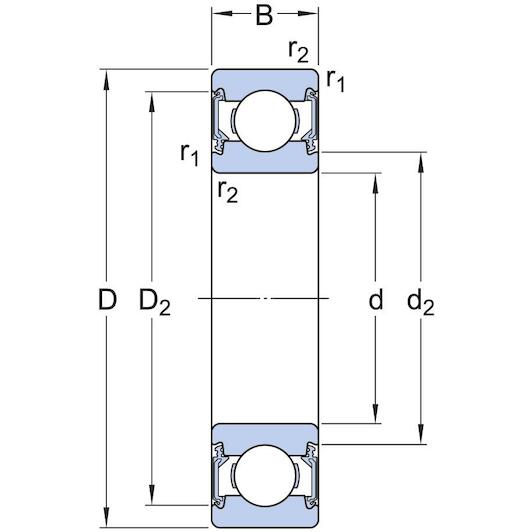

What are the dimensions of this SKF ball bearing?: This ball bearing has an inside diameter of 17 mm, an outside diameter of 35 mm, and a width of 10 mm.
What does the 2RSH suffix indicate?: It indicates that the bearing is equipped with contact rubber seals on both sides to keep contaminants out.
What internal clearance does this bearing have?: This bearing features standard normal radial internal clearance (CN) for everyday mechanical applications.
Does this bearing need lubrication before installation?: No, the bearing comes pre-greased from the factory and is ready for immediate installation.
What type of bore does this bearing feature?: It features a standard cylindrical bore designed to fit directly onto a 17 mm shaft.
