Product description

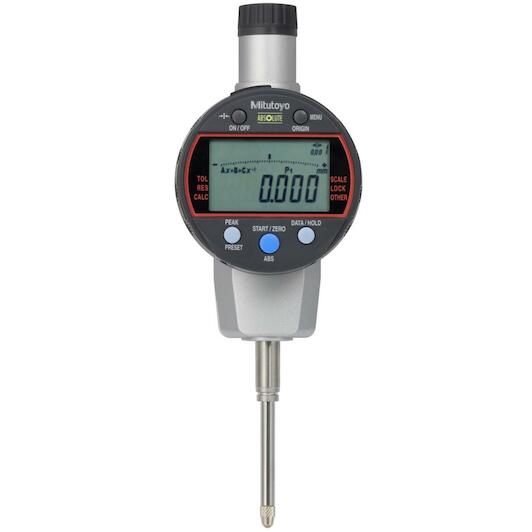

- This dial indicator allows using the calculation function for the measured value Ax+B+Cx-1
- The integrated calculation formula can be used in various applications (e.g. roll-diameter measurement)
- The coefficients A, B and C are freely definable. X = displacement of the measuring pin
- Analogue bar graph in the display (choice of 14 different scales)
- GO/NG tolerance evaluation function
- MAX/MIN/RANGE function for measuring peak values
- A fast measuring frequency mode (probe cycle 20ms or 50 times/s) is selectable for more reliable measurement in peak probing mode (MAX/MIN/RANGE)
- Simple measurement clock setting via the settings menu
- A USB interface can be used for setting the dial indicator from a PC via dedicated software
