MILWAUKEE M12 3PL-401C three-dimensional cordless laser green with 3x360° laser circles in transport case (1x 4.0Ah battery + charger) - 4933478102

Supplier number: MILWAUKEE 4933478102 | EAN 4058546340353
Recommended Retail Price €846.24
620.32 tax incl.
€512.66 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 8 products in stock.

  • Delivery by DHL

Is this laser right for you?

Answer a few questions and see if this laser is a perfect match for you.

Fast spatial layout with Milwaukee

Practical benefits
  • Three complete projection planes: Projecting one horizontal and two vertical 360° lines lets you square and level entire rooms without repositioning the tool.
  • High visibility green beams: Crisp green diodes deliver a working range of 38 metres that extends to 100 metres with an optional detector.
  • Integrated magnetic fine adjustment: Built-in rare-earth magnets clamp securely to steel studs, while micro-control rotation facilitates point-to-point alignment.

In a nutshell

The right choise for

The Milwaukee M12 3PL-401C cordless cross line laser lets you lay out and square entire rooms quickly. Projecting three green 360° laser planes, one horizontal and two vertical, it simplifies partition wall layout, drop ceilings, and tiling without moving the tool. Crisp green beams deliver a 38-metre visible range, reaching 100 metres with a detector.

A precision of 0.3 mm/m and a 4° self-levelling range maintain dependable layout lines. The built-in magnetic bracket with fine adjustment clamps firmly onto steel studs for fast point alignment.

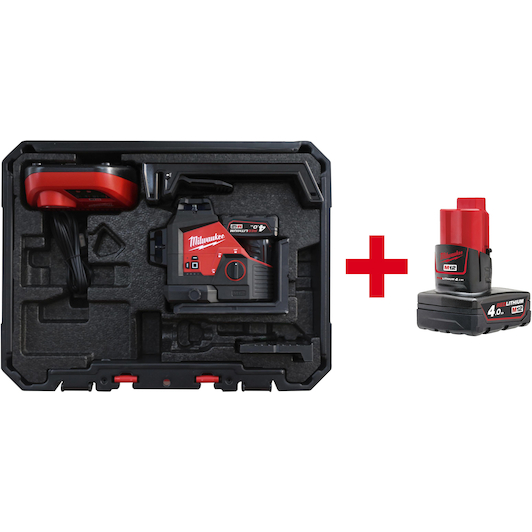

Weighing 1.1 kg, the rugged IP54 housing withstands worksite dust and water spray. This kit includes an M12 B4 4.0Ah battery, C12 C charger, track clip, target plate, and kitbox.

Recommended Combinations
With Milwaukee M12 3 Ah Battery
With Milwaukee M12 4 Ah Battery


€620.32
In stock - tax incl.

Product information

Key features according to our expert

  • Laser type: Cross line laser
  • Type of system case: Not applicable
  • Max. range: 38 m
  • With tripod: No
  • Tripod thread: 1/4"; 5/8"
  • Projection (laser beams): 3x 360°, 1 horizontal, 2 vertical
  • Weight: 1,1 kg
  • Self-levelling range: 4,0000 °
  • Supplied in: Case
  • Max. range with receiver: 100 m
  • Laser class: Class 2
  • Accuracy: 0,3 mm/m
  • Colour (laser beams): Green
  • Rating (IP): IP54
  • Product Range: Milwaukee M12

Supplied as standard

  • 1 x M12 B4 Battery pack
  • C12 C Charger
  • Supplied in: Kitbox
  • Track clip
  • HIVIST

Product description

  • M12 green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool
  • High intensity green laser diode for maximised visibility; up to 4x better visibility vs red lasers
  • High intensity green beams provide a working range of 38 m and up to 100 m with a detector
  • Provides all-day run time of 15+ hours with an M12 B4 battery pack
  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
  • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
  • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
  • Flexible battery system: works with all MILWAUKEE M12batteries

All Features

Laser type
Cross line laser
Type of system case
Not applicable
Max. range
38 m
With tripod
No
Tripod thread
1/4"; 5/8"
Projection (laser beams)
3x 360°, 1 horizontal, 2 vertical
Weight
1,1 kg
Self-levelling range
4,0000 °
Supplied in
Case
Max. range with receiver
100 m
Laser class
Class 2
Accuracy
0,3 mm/m
Colour (laser beams)
Green
Rating (ip)
IP54
Max. working time with m12 b4 battery (hours)
15
Self-levelling range (°)
4
Self-levelling time (sec)
3
Accuracy (mm/m)
0.3
Product range
Milwaukee M12
Operating range receiver (m)
50 / 100
Colour of laser
Green
Laser classification
Class 2
Battery type
Li-ion
Voltage (v)
12
Laser projection
2x vertical, 1x horizontal
Number of batteries supplied
1
  • Brand MILWAUKEE
  • EAN 4058546340353
  • Supplier number MILWAUKEE 4933478102

Accessories

View more accessories (32)

Frequently asked questions about this product

Answered by specialists
Which laser lines does this unit project?
It projects three 360° lines: one horizontal and two vertical. This allows you to level, plumb, and square layouts across complete rooms.
What is the operating range of the laser?
The working range is 38 m under normal conditions. Using a compatible detector extends the working distance up to 100 m.
Are a battery and charger included in this kit?
Yes, this set comes with one M12 B4 12V 4.0Ah Li-ion battery, a C12 C charger, a carry case, a track clip, and a high-visibility target plate.
Which tripods can be used with this laser?
The integrated bracket features both 1/4" and 5/8" threads. You can mount it directly onto standard camera and construction tripods.
Is this tool built to withstand jobsite environments?
Yes, an IP54 rating shields the housing against dust and water spray. The over-moulded construction also resists drops from up to 1 m.
