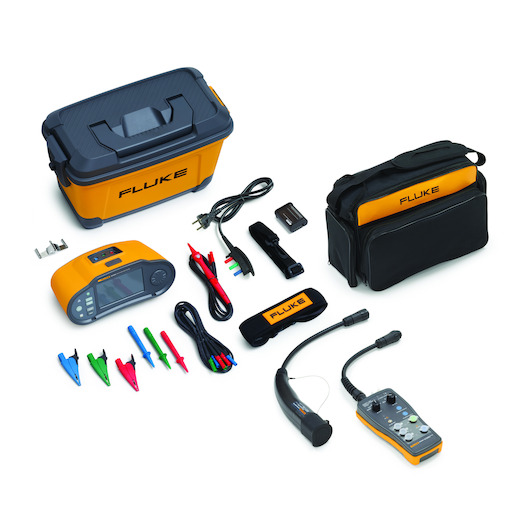

Scope of delivery
- Multifunctional installation tester
- FEV300 test adapter set for EV charging stations
- Heavy-duty power cord with a single input connector
- Carrying case
- USB-C power adapter for charging
- Probe for remote measurements
- Carrying strap
- Zeroing adapter
- Measurement leads and probes
- Crocodile clips
- Li-Ion battery
Product description
- Simple bidirectional user interface eliminates complex multi-level menus
- Easy installation with the colour touch screen, smart device or a PC
- Fast and accurate testing with automatic test and automatic measurement validation
- Fluke Connect compatibility eliminates the need for data entry
- View results and generate certificates on-site with Fluke TruTest-software (not included)
The Fluke 1673 FC multifunction installation tester will revolutionise the way you work. The Fluke 1673 FC multifunction installation tester has all the features of the 1672, such as earth resistance testing, automatic test functionality and compatibility with Fluke Connect. With its ergonomic design, seamless user interface, integrated data management capabilities, wireless connectivity and comprehensive reporting software, the 1673 FC sets the new standard as an integrated installation testing solution. With the 1670-series installation testers, you can check the safety of electrical installations in residential, commercial and industrial applications and comply with IEC 60364 requirements and all relevant local standards of IEC 61557. Perform your required tests up to 30% faster and reduce the time spent on documentation by up to 50%, all with full confidence in the data you collect. Fluke 1670-series multifunction installation testers streamline your installation and test preparations with the help of the intuitive user interface and high-resolution colour touchscreen. You can enter site information and set test routes directly from the tester, your mobile device or from a PC, and as you test you can edit this information directly on the instrument, ensuring accurate data.
Key features
- Field-updatable - you can apply rule changes or improvements to the tester in the field.
- Compact, lightweight (less than 1.6 kg) and with padded neck strap leaving your hands free.
- Colour touch screen and rotary knob for quick navigation, without complex multi-level menus.
- Rechargeable 2,500 mAh Li-ion battery for all-day testing.
- Standard USB-C charging port with fast charging support for convenient charging on the go.
- Newly designed professional carrying case for transporting and protecting your installation tester and accessories.
- Additional high-current loop mode allowing faster measurements than with non-trip loop tests for circuits protected by residual current devices.
- Insulation monitoring devices (IMD) testing.
- Surge protection device (SPD) functional test.
- Voltage drop measurement function.
- Z-max memory for loop tests for easy evaluation of the highest loop test value.
- Unique zeroing adapter for fast, reliable and accurate compensation for measurement and mains cables.
- Simultaneous voltage measurements between L-N, L-PE and N-PE using the power cord. This does not require changing the measurement connections.
- Simultaneously measure tripping time and tripping current of RCCBs (RCCB type AC, A, B, F and GFCI).
- Measures PEFC or PSC and loop impedance simultaneously and displays them on the dual screen.
- Ring tests allow you to select the required input connections without having to exchange test leads.
- Pass-through test with low test current (10 mA) to measure motor windings.
- The earth potential touch pad detects elevated earth potentials above 50 V and alerts you to potentially dangerous situations.
