FLUKE 709H precision loop calibrator with HART communication/diagnosis - 4234361

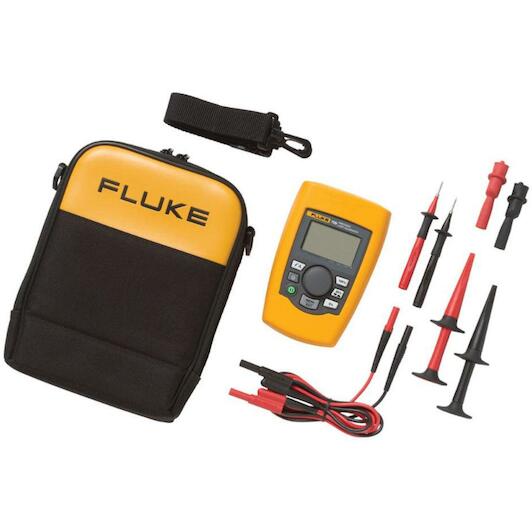

Scope of delivery

• Fluke 709H precision current loop calibrator with HART communication/diagnostics
• 754-8016 crocodile clip set
• 75X-8014 stackable test lead set
• TP220-4201 measuring probes
• AC280-5001 Suregrip-haakklemmen
• Carrying case
• Six AAA batteries (installed)
• CD-ROM with product manual
• Quick guide
• Safety information

Product description:

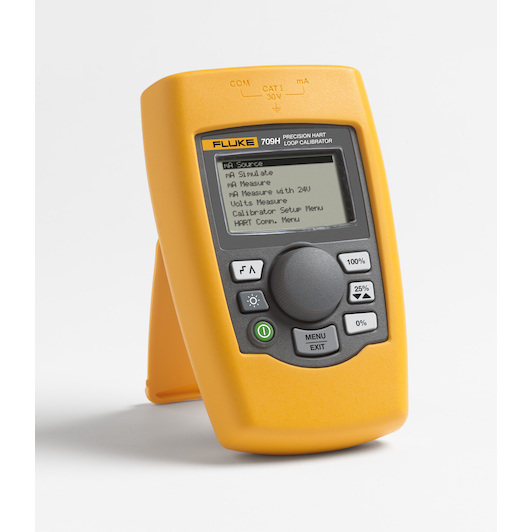

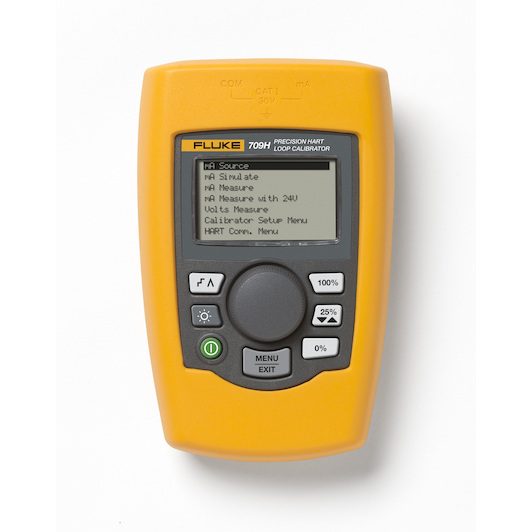

• The Fluke 709 precision loop calibrator is built around a user-friendly interface with a 'Quick-Set' encoder dial.
• The protective holster fits snugly in the technician's hand and the large backlit display is easy to read, even in dark, cramped working environments.
• This instrument reduces the time of measuring, or generating, voltage or current and feeding a loop.
• It is designed with time-saving and high-quality results in mind.
• The 709H provides HART communication and supports a specially selected set of universal and common HART commands.
• This makes the 709H unique: an affordable, compact loop calibrator on the one hand, and a powerful tool for HART communication on the other.

Key features

• Highest-in-class accuracy of 0.01% of reading
• Rugged compact design runs on (6) standard AAA batteries
• Intuitive user interface with 'Quick-Set' button for quick set-up and user-friendliness
• Built-in selectable 250?resistor for HART communication
• 24V loop power supply with mA measurement mode (-25% to 125%)
• Resolution of 1 µA in mA ranges and 1 mV in voltage ranges
• Simple two-wire connection for all measurements
• Automatic switch-off to save battery power (adjustable up to 30 minutes)
• Variable step and rise time in seconds
• Adjustable range selection (0 to 20 mA or 4 to 20 mA)

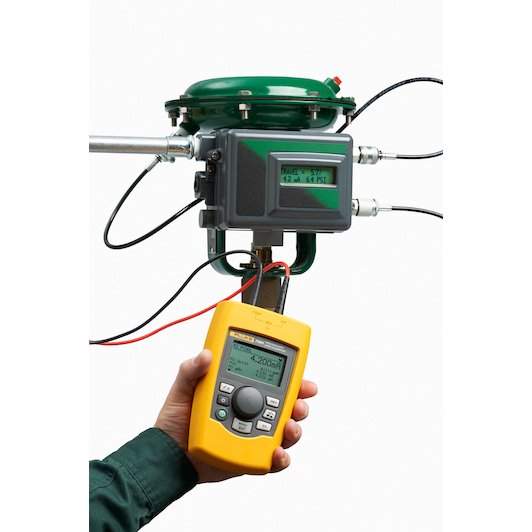

• Valve test (simulating average mA values with % keys)
• HART-specific functions and capabilities include:
  • Fast transfer of calibration data.
  • The 709H/Track software/cable documents the parameters of all HART transmitters in your installation, in .csv or in .txt format.
  • Log or record data about a particular transmitter for the purpose of troubleshooting.
  • The data logging function has a selectable recording interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.
  • Each data group contains the measurement of the 709H, all four process variables and the default status conditions.
• In the communicator mode, the user can read basic information from the device, perform diagnostic tests and set the calibration of most HART communication-capable transmitters.
• In the past, this was only possible with a dedicated communicator, a high-end multifunction calibrator or a laptop with a HART modem.
• With the Fluke 709H, practically any technician can service and support HART devices.
